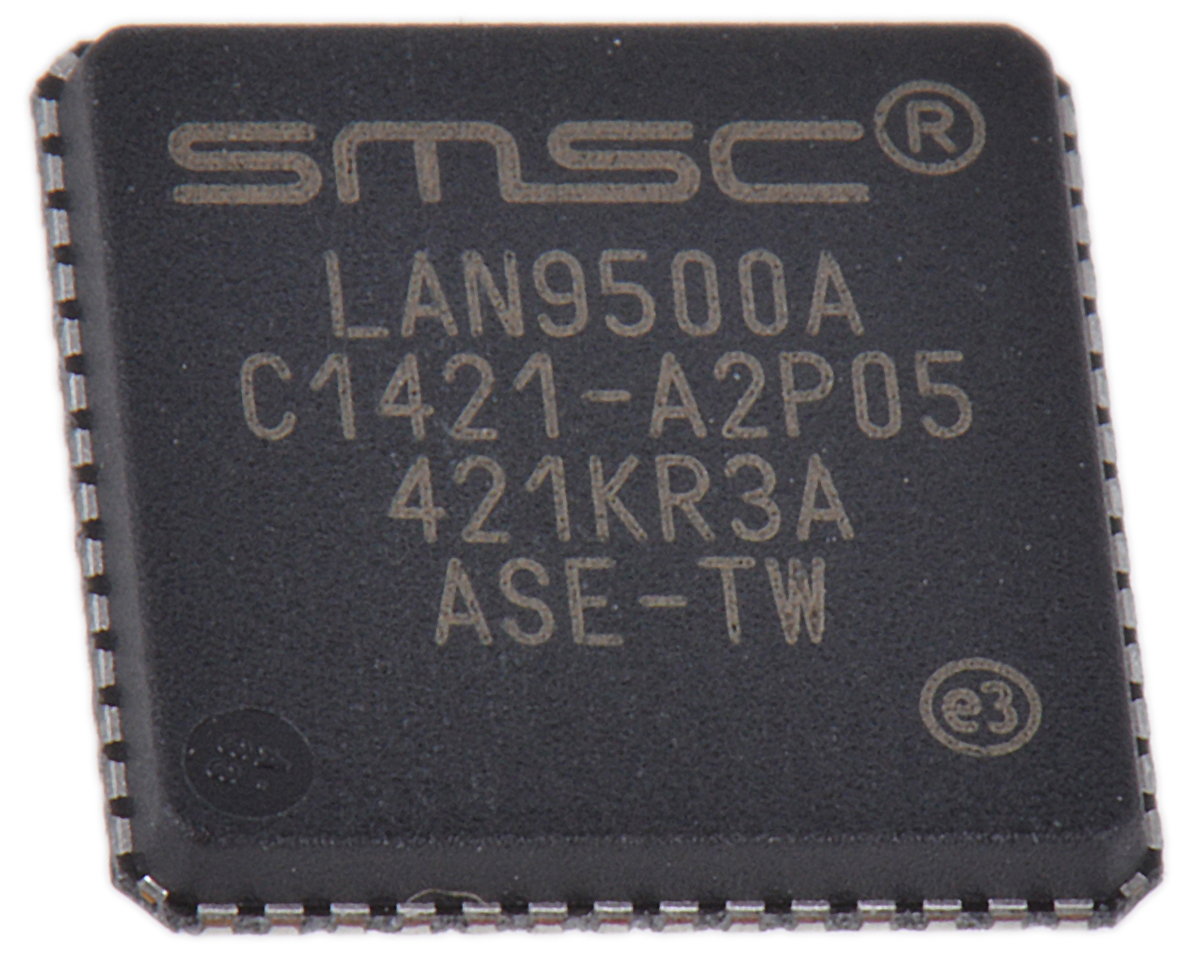

Microchip LAN9500A-ABZJ, Ethernet Controller, 100MBps MII, USB, 3.3 V, 56-Pin QFN

LAN9500A-ABZJ Microchip , Ethernet Controller, 100MBps MII, USB, 3.3 V, 56-Pin QFN
LAN9500A-ABZJ
Microchip

Product Information

Network Interface:
MII
Dimensions:
8.15 x 8.15 x 0.95mm
Mounting Type:
Surface Mount
IC Type:
Controller IC
Loopback Mode:
External, Internal
Typical Operating Supply Voltage:
3.3 V
Host Interface:
USB
Package Type:
QFN
Auto-Negotiation:
Yes
Minimum Operating Temperature:
0 °C
Data Rate:
100Mbps
Physical Network Type:
100BaseTX, 10BaseT
Standard Supported:
IEEE 802.3, IEEE 802.3u
Maximum Operating Temperature:
+70 °C
Pin Count:
56
Communication Mode:
Full Duplex, Half Duplex
RoHs Compliant
Checking for live stock

This is Ethernet Controller 100MBps MII USB 3.3 V 56-Pin QFN manufactured by Microchip. The manufacturer part number is LAN9500A-ABZJ. The product is offered with mii network interface . The given dimensions of the product include 8.15 x 8.15 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes controller ic type IC . Moreover, it has an external, internal loopback mode . It has 3.3 v of typical operating supply voltage. The product has a host interface of usb . The package is a sort of qfn. It has an auto-negotiation feature yes . Whereas, the minimum operating temperature of the product is 0 °c. It has a maximised data speed rate of 100mbps. It has 100basetx, 10baset type physical network . It is ieee 802.3, ieee 802.3u standard supported . It has a maximum operating temperature of +70 °c. It contains 56 pins. It is offered with full duplex, half duplex communication mode .

pdf icon
LAN950x USB 2.0 to 10/100 Ethernet Controller Data Sheet(Technical Reference)
pdf icon
LAN9500 USB 2.0 to 10/100 Ethernet Controller(Technical Reference)
