Product Type:

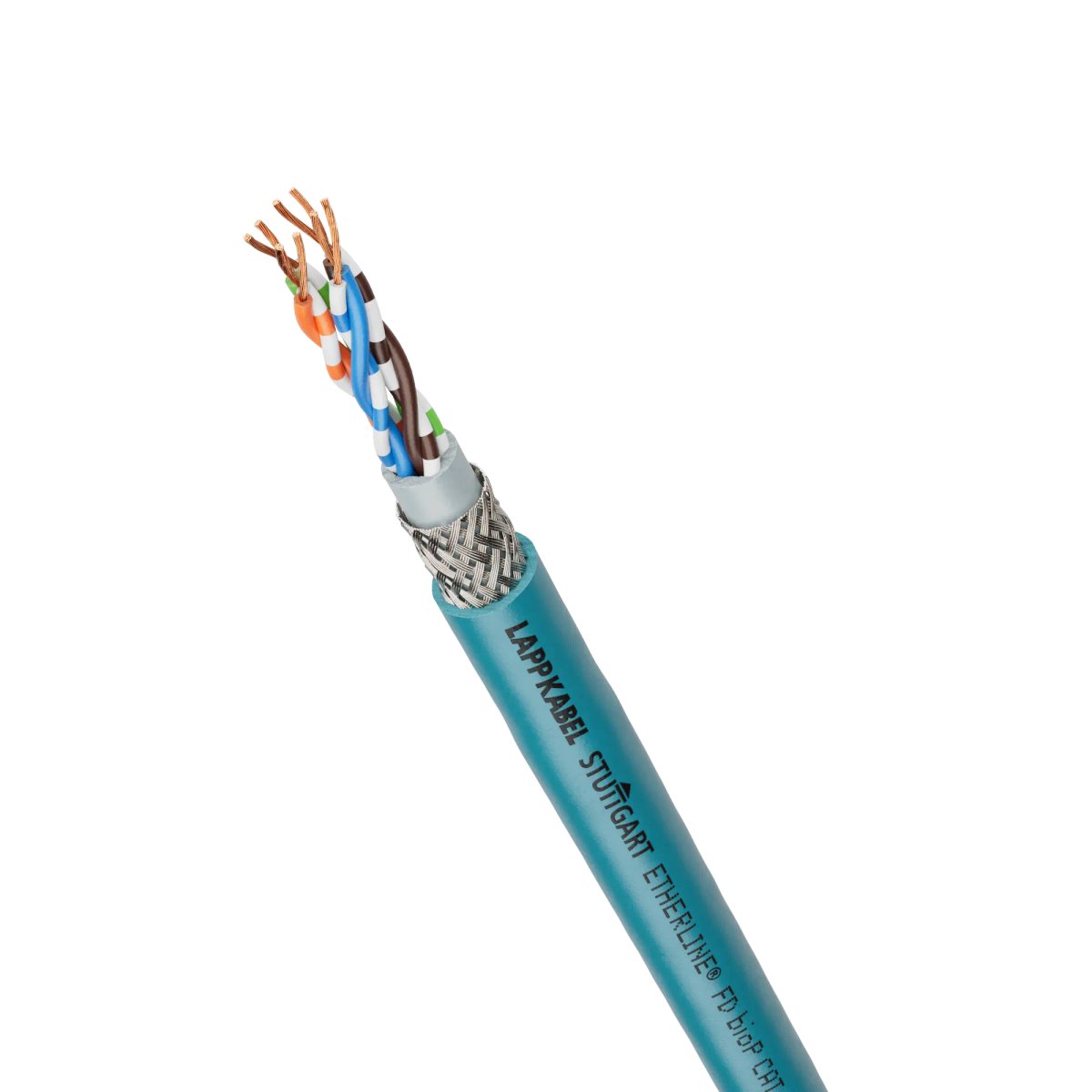

Cat5e Ethernet Cable Assembly
Outside Diameter:
6.3 mm
Conductor Material:
Tin Copper Wire
Series:
ETHERLINE FD bioP
Shield Type:
Shielded
Fire Behaviour:
Halogen free acc. to IEC 60754-1, FT2 acc. to UL 1581 §1100, Flame Retardant acc. to IEC 60332-2-2, EN 60754-1, EN
Core Strands:
19
Screened/Unscreened:
Screened
Minimum Operating Temperature:
-40°C
Conductor Type:
Stranded
Standards/Approvals:
IEC 60754-1, CSA C22.2 No.210, EN 60754-1, EN 60332-2-2, EN 50363-10-2, LV-Directive 2014/35/EU, EN 50288-2-2, IEC 61156-6, FT2 acc. to UL 15811100, ISO/IEC 11801, ISO 4892-2, EN 50173, UL 758, EU-Directive 2011/65/EU (RoHS), IEC 60332-2-2
Jacket Material:
Thermoplastic Polyurethane
Number of Cores:
8
Cable CSA:
0.14 to 2 mm²
LAN Category:
Cat5e
Maximum Operating Temperature:
80°C
Cable Length:
60m
