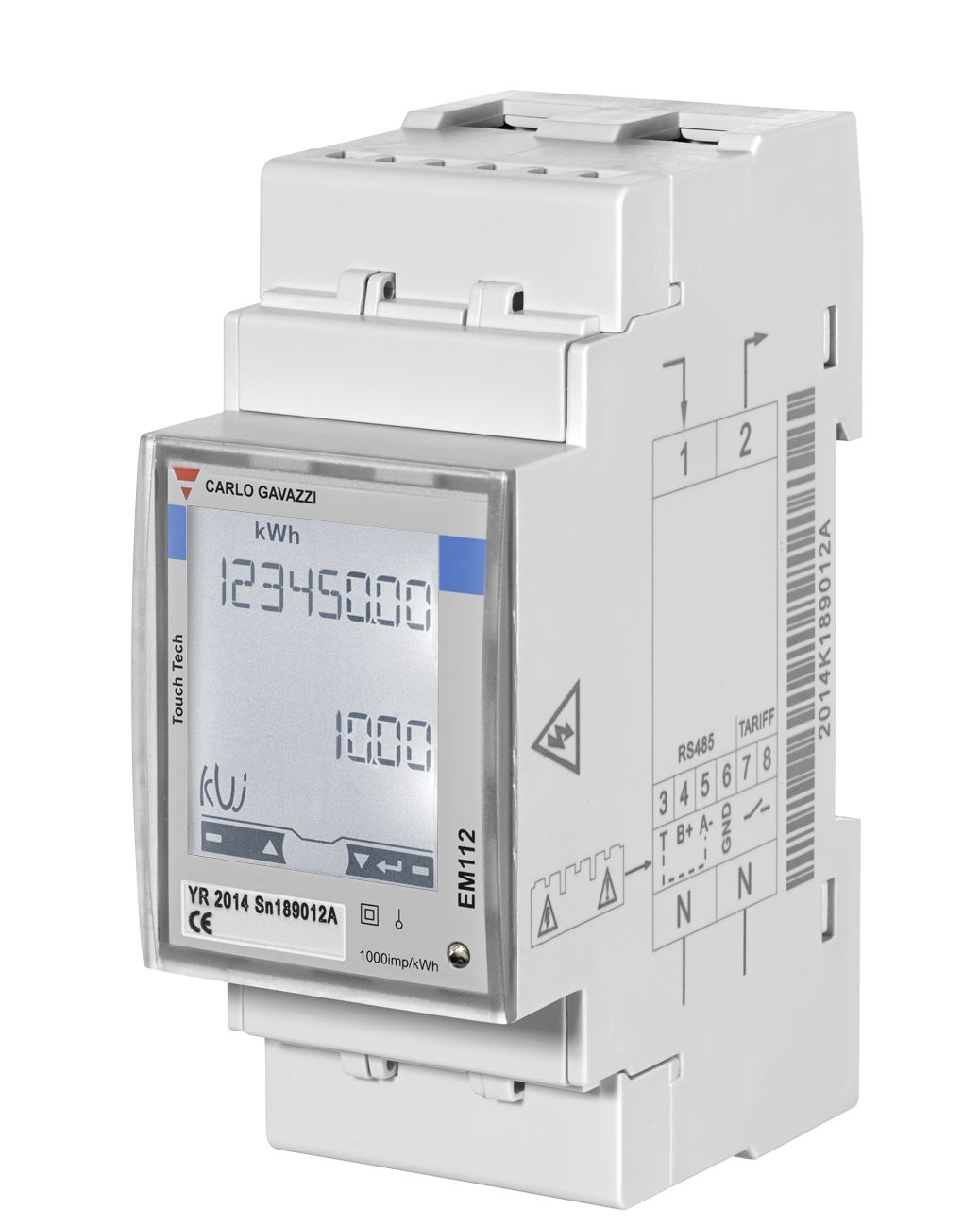

Carlo Gavazzi EM112 1 Phase LCD Energy Meter, 90mm Cutout Height

The EM112DINAV01XO1X from Carlo Gavazzi is a high‑precision DIN‑rail mounted single‑phase energy meter designed for cost allocation, energy monitoring and export/import measurement in industrial, commercial or building‑automation environments. With a 230 V L‑N rating, direct connection up to 100 A, and selectable tariffs, it delivers comprehensive energy analytics via an 8‑digit LCD display. Built for robustness and ease of installation, its 90 mm‑tall housing adapts seamlessly into modular panel systems.

How It Benefits Users

• Accurate energy measurement in single‑phase (2‑wire) systems up to 230 V L‑N and 100 A direct connection capacity.
• Class 1 (kWh) to IEC 62053‑21 and Class B to EN 50470‑3 rated for reliable billing‑grade performance.
• LCD backlit display with touch keypad for clear read‑out of kWh, kvarh, V, A, PF, Hz, demand, and more.
• DIN‑rail mounting and compact 35 × 90 × 63 mm footprint for easy panel integration.
• Optional communication: RS‑485 Modbus output (or M‑bus) and pulse output for remote monitoring or building management systems.
• Self‑powered design with minimal insertion effort, dual‑tariff management and export/import measurement capability.

Optimised Performance for Energy Monitoring and Control

The EM112DINAV01XO1X is engineered for sustained accuracy and reliability in demanding installations. Its direct‑connect capability up to 100 A avoids the need for external current transformers in many applications, reducing cost and complexity. The modular DIN‑rail form factor supports fast deployment in switchboards, while optional communications enable integration into SCADA or energy‑management platforms for real‑time visibility and reporting.

Typical Uses of the Carlo Gavazzi 1 Phase LCD Energy Meter

• Monitoring of facility energy consumption and exports in industrial, commercial or utility-connected panels.
• Cost‑allocation and sub‑billing in multi‑tenant buildings, retail outlets or manufacturing cells.
• Integration into BMS (building management systems) or EMS (energy management systems) via RS‑485/Modbus communication.
• Panel‑mounted metering in energy‑distribution boards, sub‑distribution or HVAC control cabinets.
• Verification of renewable generation export (e.g., rooftop solar).
• OEM panel builders for use in modular switch‑gear assemblies.

For more information please check the datasheets.
