Dimensions:
14 x 104 x 80mm
Coil Voltage:
24V dc
Input Current:
18mA
Life:
5 x 10^6 (Mechanical) cycles
Standards Met:
cUL 508 Recognized, EN 50178, UL 508 Recognized
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+60°C
Terminal Type:
Push In
Operating Temperature Range:
-20 → +60°C
Contact Configuration:
DPDT
Depth:
104mm
Relay Switching Classification:
Interface Relay Module
Special Features:
Integrated Status LED and Freewheeling Diode, IP20 Relay Base
Mounting Type:
DIN Rail
Series:
PLC-RPT- 24DC/21-21AU/MS
Length:
14mm
Height:
80mm
Minimum Operating Temperature:
-20°C
Number of Poles:
2
Maximum Input Voltage:
24V dc
Contact Material:
Au, Silver Alloy
HTSUS:
8536.41.0020
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
Operating Temperature:
-20°C ~ 60°C
Coil Resistance:
1.333 kOhms
Coil Current:
18 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
20.2 VDC
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Operate Time:
10 ms
Must Release Voltage:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
6 A
Features:
Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button
Mounting Type:
DIN Rail
Series:
PLC-RPT
Release Time:
10 ms
Coil Insulation:
Class A
ECCN:
EAR99
Base Product Number:
29105
Contact Material:
Silver Nickel (AgNi), Gold (Au)

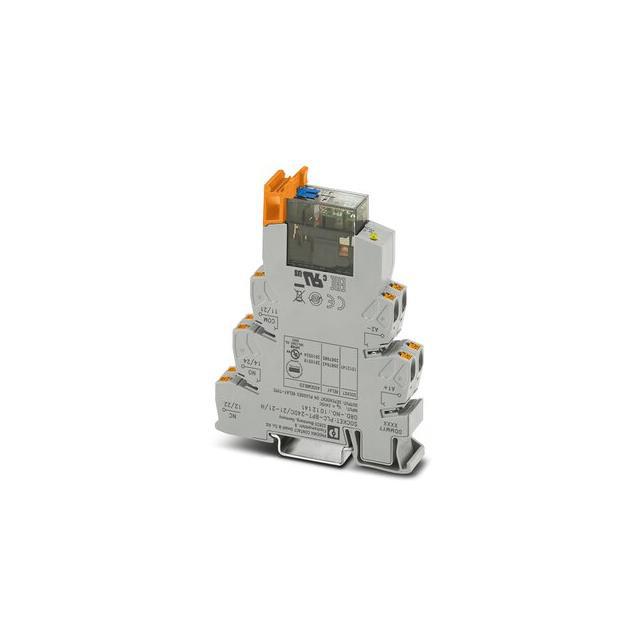

This is PLC-RPT Series 24V dc DIN Rail Interface Relay Module DPDT Push In manufactured by Phoenix Contact. The manufacturer part number is 2910524. The given dimensions of the product include 14 x 104 x 80mm. The coil voltage of the product is 24v dc. It has about 18ma input current . It is capable of doing 5 x 10^6 (mechanical) cycles in a lifetime . The product complies with all safety standards, such as cul 508 recognized, en 50178, ul 508 recognized. The product's switching voltage is 250v ac/dc. It has a maximum operating temperature of +60°c. The terminal is a push in type. The product has -20 → +60°c of operating temperature range. The contact is equipped with dpdt configuration. The product comes in 104mm depth. It has a interface relay module switching relay configuration . The product also provides special features, such as integrated status led and freewheeling diode, ip20 relay base. The product is available in din rail configuration. The product plc-rpt- 24dc/21-21au/ms, is a highly preferred choice for users. Its accurate length is 14mm. In addition, the height is 80mm. Whereas, the minimum operating temperature of the product is -20°c. It has equipped with 2 poles. 24v dc is the maximum voltage of the bespoke product. The product is made from sturdy au, silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The coil voltage of the product is 24vdc. Moreover, it has spring terminal terminal style. The product has -20°c ~ 60°c operating temperature range. It holds up to 1.333 kohms coil resistance. It has a coil current of 18 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. On the other hand, 20.2 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. The operating time of the product is 10 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include diode, lighted indicator, mechanical indicator, socket included, test button. The product plc-rpt, is a highly preferred choice for users. While 10 ms is its release time. The coil is a class a insulation. The product is designated with the ear99 code number. Moreover, it corresponds to 29105, a base product number of the product. The product is made from sturdy silver nickel (agni), gold (au) materials.
