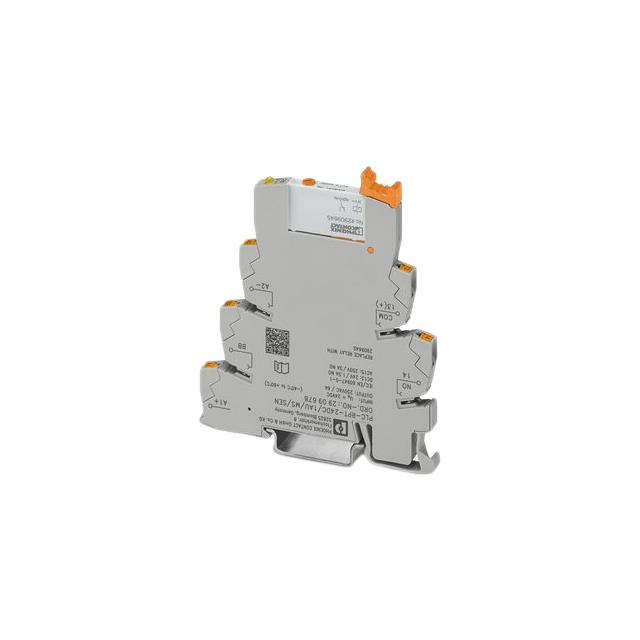

Phoenix Contact PLC-RPT Series 24V dc DIN Rail Interface Relay Module, SPNO, Push In
Product Information
Maximum Operating Temperature:
+60°C
Dimensions:
94 x 80 x 6.2mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-40 → +60°C
Series:
PLC-RPT- 24DC/ 1AU/MS/SEN
Coil Voltage:
24V dc
Length:
94mm
Height:
80mm
Minimum Input Voltage:
24V dc
Depth:
6.2mm
Maximum Input Voltage:
24V dc
Input Current:
15.3mA
Minimum Operating Temperature:
-40°C
Contact Configuration:
SPST
Number of Poles:
1
Terminal Type:
Push In
Contact Material:
Gold Plated
HTSUS:
8536.41.0020
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
Operating Temperature:
-40°C ~ 60°C
Coil Resistance:
2.667 kOhms
Coil Current:
9 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
18.5 VDC
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPST-NO (1 Form A)
Operate Time:
5 ms
Must Release Voltage:
-
standardLeadTime:
6 Weeks
Contact Rating (Current):
6 A
Features:
Diode, Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
PLC-RPT
Release Time:
8 ms
Coil Insulation:
Class A
ECCN:
EAR99
Base Product Number:
29096
Contact Material:
Silver Tin Oxide (AgSnO), Gold (Au)
Checking for live stock
FAQs
Yes. You can also search 2909678 on website for other similar products.
We accept all major payment methods for all products including ET16848132. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2909678 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Electromechanical Interface Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact PLC-RPT Series 24V dc DIN Rail Interface Relay Module, SPNO, Push In. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact PLC-RPT Series 24V dc DIN Rail Interface Relay Module, SPNO, Push In.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16848132 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16848132.
Yes. We ship 2909678 Internationally to many countries around the world.
This is PLC-RPT Series 24V dc DIN Rail Interface Relay Module SPNO Push In manufactured by Phoenix Contact. The manufacturer part number is 2909678. It has a maximum operating temperature of +60°c. The given dimensions of the product include 94 x 80 x 6.2mm. The product is available in din rail configuration. The product has -40 → +60°c of operating temperature range. The product plc-rpt- 24dc/ 1au/ms/sen, is a highly preferred choice for users. The coil voltage of the product is 24v dc. Its accurate length is 94mm. In addition, the height is 80mm. The product has 24v dc of minimum input voltage. The product comes in 6.2mm depth. 24v dc is the maximum voltage of the bespoke product. It has about 15.3ma input current . Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with spst configuration. It has equipped with 1 poles. The terminal is a push in type. The product is made from sturdy gold plated materials. It is assigned with possible HTSUS value of 8536.41.0020. The coil voltage of the product is 24vdc. Moreover, it has spring terminal terminal style. The product has -40°c ~ 60°c operating temperature range. It holds up to 2.667 kohms coil resistance. It has a coil current of 9 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. On the other hand, 18.5 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in bulk package . It also has a spst-no (1 form a) contact form. The operating time of the product is 5 ms. It has a long 6 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include diode, lighted indicator, socket included. The product plc-rpt, is a highly preferred choice for users. While 8 ms is its release time. The coil is a class a insulation. The product is designated with the ear99 code number. Moreover, it corresponds to 29096, a base product number of the product. The product is made from sturdy silver tin oxide (agsno), gold (au) materials.
