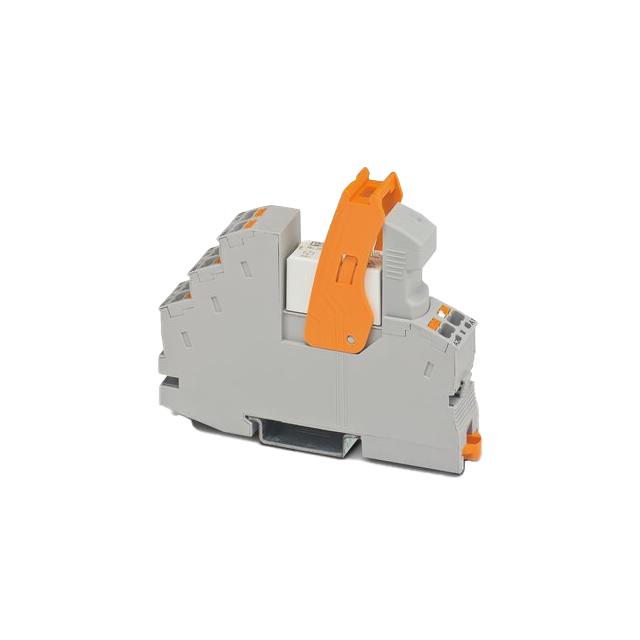

Phoenix Contact RIF Series 24V dc DIN Rail Interface Relay Module, Screw 24V dc
Product Information
Dimensions:
16 x 75 x 93mm
Coil Voltage:
24V dc
Turn On Time:
8ms
Turn Off Time:
10ms
Input Current:
18mA
Life:
30000000 Cycles
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Screw
Relay Type:
Solid State Relay
Operating Temperature Range:
-40 → +70°C
Contact Configuration:
SPST
Depth:
75mm
Relay Switching Classification:
Interface Relay Module
Special Features:
IP20 Degree of Protection
Mounting Type:
DIN Rail
Series:
RIF-1-RPT-LDP-24DC/1IC
Input Voltage Range:
24V dc
Accessory Type:
Relay Module
Length:
16mm
Height:
93mm
Minimum Operating Temperature:
-40°C
Minimum Input Voltage:
19.2V
Number of Poles:
1
Maximum Input Voltage:
24V dc
Contact Material:
Silver Alloy
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
1.333 kOhms
Coil Current:
18 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPST-NO (1 Form A)
Operate Time:
8 ms
Must Release Voltage:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
6 A
Features:
Diode, Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
RIF
Release Time:
10 ms
Coil Insulation:
Class A
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
29098
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2909884 on website for other similar products.
We accept all major payment methods for all products including ET16756733. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2909884 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Electromechanical Interface Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact RIF Series 24V dc DIN Rail Interface Relay Module, Screw 24V dc. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact RIF Series 24V dc DIN Rail Interface Relay Module, Screw 24V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16756733 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16756733.
Yes. We ship 2909884 Internationally to many countries around the world.
This is RIF Series 24V dc DIN Rail Interface Relay Module Screw 24V dc manufactured by Phoenix Contact. The manufacturer part number is 2909884. The given dimensions of the product include 16 x 75 x 93mm. The coil voltage of the product is 24v dc. It has a 8ms turn On time. The given turn off time is 10ms. It has about 18ma input current . It is capable of doing 30000000 cycles in a lifetime . The product's switching voltage is 250v ac/dc. It has a maximum operating temperature of +70°c. The terminal is a screw type. This is basically a solid state relay. The product has -40 → +70°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 75mm depth. It has a interface relay module switching relay configuration . The product also provides special features, such as ip20 degree of protection. The product is available in din rail configuration. The product rif-1-rpt-ldp-24dc/1ic, is a highly preferred choice for users. It has 24v dc of input voltage range. It is a type of relay module accessory. Its accurate length is 16mm. In addition, the height is 93mm. Whereas, the minimum operating temperature of the product is -40°c. The product has 19.2v of minimum input voltage. It has equipped with 1 poles. 24v dc is the maximum voltage of the bespoke product. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has spring terminal terminal style. In addition, it is reach affected. The product has -40°c ~ 70°c operating temperature range. It holds up to 1.333 kohms coil resistance. It has a coil current of 18 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spst-no (1 form a) contact form. The operating time of the product is 8 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include diode, lighted indicator, socket included. The product rif, is a highly preferred choice for users. While 10 ms is its release time. The coil is a class a insulation. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to 29098, a base product number of the product. The product is designated with the ear99 code number.
