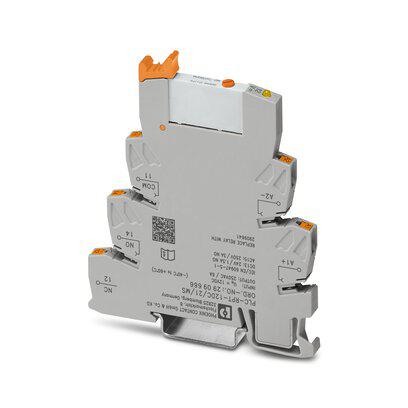

Phoenix Contact PLC-RPT Series 12V dc DIN Rail Interface Relay Module, SPDT, Push In
Product Information
Maximum Operating Temperature:
+60°C
Dimensions:
94 x 80 x 6.2mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-40 → +60°C
Series:
PLC-RPT- 12DC/21/MS
Coil Voltage:
12V dc
Length:
94mm
Height:
80mm
Minimum Input Voltage:
12V dc
Depth:
6.2mm
Maximum Input Voltage:
12V dc
Input Current:
15.3mA
Minimum Operating Temperature:
-40°C
Contact Configuration:
SPDT
Number of Poles:
1
Terminal Type:
Push In
Contact Material:
Silver Alloy
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
Spring Terminal
REACH Status:
REACH Affected
Operating Temperature:
-40°C ~ 60°C
Coil Resistance:
784.314 Ohms
Coil Current:
15.3 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
Sealed - Fully
Must Operate Voltage:
9.7 VDC
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
5 ms
Must Release Voltage:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
6 A
Features:
Diode, Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
PLC-RPT
Release Time:
8 ms
Coil Insulation:
Class A
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
29096
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2909666 on website for other similar products.
We accept all major payment methods for all products including ET16756723. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2909666 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Electromechanical Interface Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact PLC-RPT Series 12V dc DIN Rail Interface Relay Module, SPDT, Push In. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact PLC-RPT Series 12V dc DIN Rail Interface Relay Module, SPDT, Push In.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16756723 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16756723.
Yes. We ship 2909666 Internationally to many countries around the world.
This is PLC-RPT Series 12V dc DIN Rail Interface Relay Module SPDT Push In manufactured by Phoenix Contact. The manufacturer part number is 2909666. It has a maximum operating temperature of +60°c. The given dimensions of the product include 94 x 80 x 6.2mm. The product is available in din rail configuration. The product has -40 → +60°c of operating temperature range. The product plc-rpt- 12dc/21/ms, is a highly preferred choice for users. The coil voltage of the product is 12v dc. Its accurate length is 94mm. In addition, the height is 80mm. The product has 12v dc of minimum input voltage. The product comes in 6.2mm depth. 12v dc is the maximum voltage of the bespoke product. It has about 15.3ma input current . Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with spdt configuration. It has equipped with 1 poles. The terminal is a push in type. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 12vdc. Moreover, it has spring terminal terminal style. In addition, it is reach affected. The product has -40°c ~ 60°c operating temperature range. It holds up to 784.314 ohms coil resistance. It has a coil current of 15.3 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. Seal rating options: sealed - fully. On the other hand, 9.7 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 5 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include diode, lighted indicator, socket included. The product plc-rpt, is a highly preferred choice for users. While 8 ms is its release time. The coil is a class a insulation. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to 29096, a base product number of the product. The product is designated with the ear99 code number.
