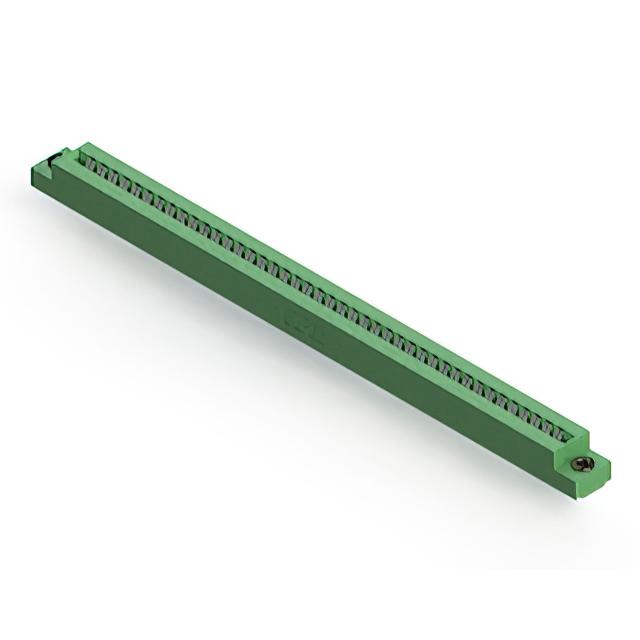

EDAC Inc. 306-042-421-103

306-042-421-103 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
42
Contact Finish Thickness:
-
Number of Positions:
84
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
306-042-421-103 Models
Number of Rows:
2
edacadModelUrl:
/en/models/13822412
Package:
Bulk
Gender:
Female
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
18 Weeks
Termination Rows:
1
Features:
-
Mounting Type:
Panel Mount, Through Hole
Color:
Green
Series:
306
Operating Temperature:
-40°C ~ 105°C
Read Out:
Dual
Pitch:
0.156" (3.96mm)
Contact Type:
Cantilever
Contact Material:
Copper Alloy
Base Product Number:
306-042
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 306-042-421-103. Furthermore, flush mount, floating bobbin, 0.116" (2.95mm) dia is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 42 positions. The product carries possible position value of 84. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in bulk package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent tin contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 1 terminal(s). The product is available in panel mount, through hole configuration. It has a classic green colour. The product 306, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. It features dual read values. Moreover, the product is 0.156" (3.96mm). It has typical contact type of cantilever. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 306-042, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
306,316,356 Series Ordering Guide(Datasheets)
pdf icon
306-042-421-103 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)
