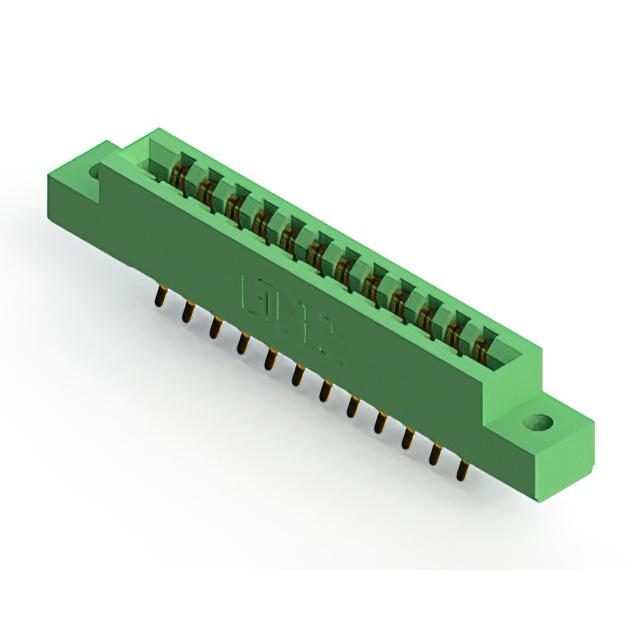

EDAC Inc. 305-024-556-502

305-024-556-502 EDAC Inc.
EDAC Inc.

Product Information

Flange Feature:
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Polyester Thermoplastic
Card Thickness:
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row:
12
Contact Finish Thickness:
10.0µin (0.25µm)
Number of Positions:
24
Card Type:
Non Specified - Dual Edge
REACH Status:
REACH Unaffected
edacadModel:
305-024-556-502 Models
Number of Rows:
2
edacadModelUrl:
/en/models/10997434
Package:
Box
Gender:
Female
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Termination:
Solder
standardLeadTime:
18 Weeks
Termination Rows:
2
Features:
Card Extender
Mounting Type:
Board Edge, Straddle Mount
Color:
Green
Series:
305
Operating Temperature:
-40°C ~ 105°C
Read Out:
Dual
Pitch:
0.156" (3.96mm)
Contact Type:
Semi Bellows
Contact Material:
Copper Alloy
Base Product Number:
305-024
ECCN:
EAR99
Checking for live stock

This is manufactured by EDAC Inc.. The manufacturer part number is 305-024-556-502. Furthermore, flush mount, top opening, unthreaded, 0.128" (3.25mm) dia is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable polyester thermoplastic insulating material. A typical product' card thickness is 0.054" ~ 0.070" (1.37mm ~ 1.78mm). It has 12 positions. It has 10.0µin (0.25µm) of contact finishing thickness. The product carries possible position value of 24. The product features a non specified - dual edge card type. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in box package . In addition, female is the available "Gender" of the product. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is not applicable. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the bespoke product is available as 2 terminal(s). The splendid features of the product include card extender. The product is available in board edge, straddle mount configuration. It has a classic green colour. The product 305, is a highly preferred choice for users. The product has -40°c ~ 105°c operating temperature range. It features dual read values. Moreover, the product is 0.156" (3.96mm). It has typical contact type of semi bellows. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 305-024, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
305,315,355 Series Ordering Guide(Datasheets)
pdf icon
305-024-556-502 Drawing(Product Drawings)
pdf icon
EDAC REACH(Environmental Information)
