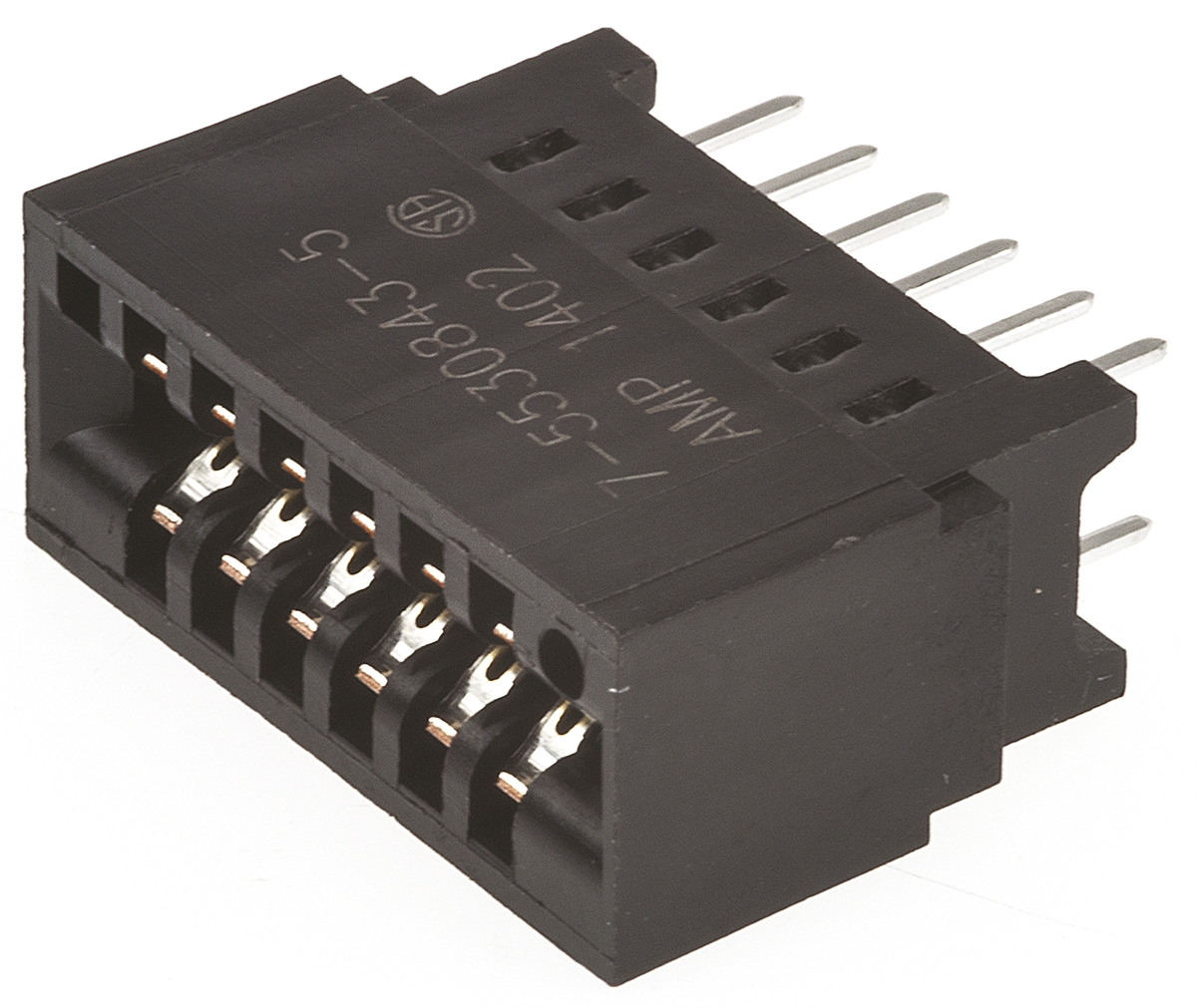

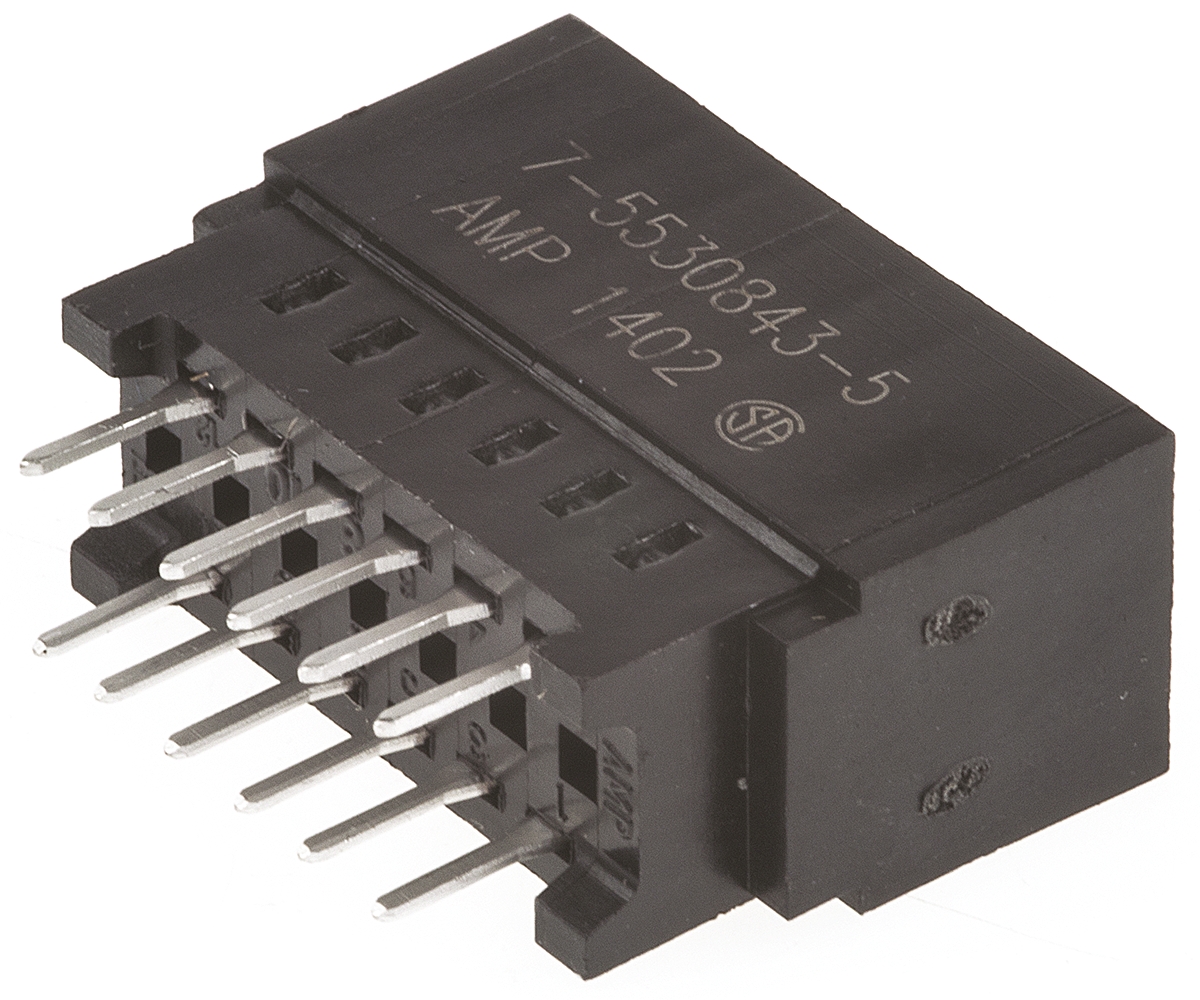

TE Connectivity Female PCB Edge Connector, Through Hole Mount, 12 Way, 2 Row, 2.54mm Pitch, 3A
Product Information
TE Connectivity’s edge connector is a 12-way through-hole mount connector with extensive applications in various industrial and commercial markets.
Current Rating:
3A
Minimum Operating Temperature:
-55°C
Mounting Type:
Through Hole
Card Type:
Dual Edge
Gender:
Female
Body Orientation:
Straight
Voltage Rating:
400 V ac
Length:
21.84mm
Termination Method:
Solder
Housing Material:
PET
Width:
15.49mm
Depth:
9.35mm
Number of Rows:
2
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Number of Contacts:
12
Maximum Operating Temperature:
+85°C
Contact Material:
Phosphor Bronze
Checking for live stock
FAQs
Yes. You can also search 7-5530843-5 on website for other similar products.
We accept all major payment methods for all products including ET16834732. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with 7-5530843-5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Edge Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity Female PCB Edge Connector, Through Hole Mount, 12 Way, 2 Row, 2.54mm Pitch, 3A. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity Female PCB Edge Connector, Through Hole Mount, 12 Way, 2 Row, 2.54mm Pitch, 3A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16834732 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16834732.
Yes. We ship 7-5530843-5 Internationally to many countries around the world.
The TE Connectivity PCB edge connector is a dual edge connector that provides daughter card connectivity solutions to a motherboard. This through-hole mount female connector features 2 rows, a straight orientation, and a rated voltage of 400 Vac. It has a minimum operating temperature of -55°C and a current rating of 3 A. Moreover, the edge card connector features gold-plated contacts, a bifurcated cantilever design, and electrical reliability. It also has integrated keying slots within the card slots to insert keying plugs. In addition, bespoke connectors are extensively used in DC-to-DC converters, grade card extenders (industrial), and related cost-effect input/output applications.
