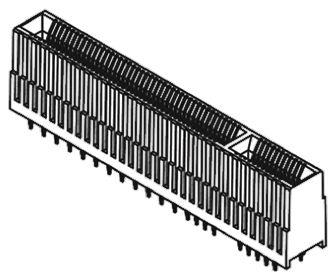

Molex EDGELINE Series, Female PCB Edge Connector, Through Hole Mount, 108 Way, 2 Row, 0.8mm Pitch, 1.5A
Product Information
Series:
EDGELINE
Current Rating:
1.5A
Minimum Operating Temperature:
-40°C
Mounting Type:
Through Hole
Voltage Rating:
250 V ac
Number of Contacts:
108
Gender:
Female
Body Orientation:
Straight
Termination Method:
Press-In
Length:
50.63mm
Housing Material:
Glass Fibre Reinforced Thermoplastic
Width:
7.31mm
Depth:
12.31mm
Number of Rows:
2
Contact Plating:
Gold over Nickel
Pitch:
0.8mm
Contact Material:
Copper Alloy
Keying Way:
Yes
Maximum Operating Temperature:
+105°C
Series Number:
76693
Manufacturer Standard Lead Time:
11 Weeks
Detailed Description:
108 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Contact Finish Thickness:
30.0µin (0.76µm)
Mounting Type:
Through Hole
Card Type:
Non Specified - Dual Edge
Color:
Black
Gender:
Female
Pitch:
0.031" (0.80mm)
Material - Insulation:
Thermoplastic, Glass Filled
Operating Temperature:
-40°C ~ 85°C
Contact Finish:
Gold
Packaging:
Tray
Read Out:
Dual
Card Thickness:
0.063" (1.60mm)
Number of Rows:
2
Series:
EdgeLine 76691
Termination:
Press-Fit
Contact Material:
Copper Alloy
Number of Positions:
108
Manufacturer:
Molex
Checking for live stock
FAQs
Yes. You can also search 76691-2108 on website for other similar products.
We accept all major payment methods for all products including ET14122836. Please check your shopping cart at the time of order.
You can order Molex brand products with 76691-2108 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Edge Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex EDGELINE Series, Female PCB Edge Connector, Through Hole Mount, 108 Way, 2 Row, 0.8mm Pitch, 1.5A. You can also check on our website or by contacting our customer support team for further order details on Molex EDGELINE Series, Female PCB Edge Connector, Through Hole Mount, 108 Way, 2 Row, 0.8mm Pitch, 1.5A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14122836 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14122836.
Yes. We ship 76691-2108 Internationally to many countries around the world.
This is EDGELINE Series Female PCB Edge Connector Through Hole Mount 108 Way 2 Row 0.8mm Pitch 1.5A manufactured by Molex. The manufacturer part number is 76691-2108. The product edgeline, is a highly preferred choice for users. The product has a current rating of 1.5a. Whereas, the minimum operating temperature of the product is -40°c. The product is available in through hole configuration. Moreover, the product has a nominal 250 v ac voltage rating. The product contains 108 contacts. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows press-in termination method. Its accurate length is 50.63mm. The product also features robust glass fibre reinforced thermoplastic housing material. Furthermore, the product is 7.31mm wide. The product comes in 12.31mm depth. It comes in 2 of rows. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 0.8mm. The product is made from sturdy copper alloy materials. It has a keying way characteristic yes . It has a maximum operating temperature of +105°c. It carries [Serial Number] serial number. It has typical 11 weeks of manufacturer standard lead time. It features 108 position female connector non specified - dual edge gold 0.031" (0.80mm) black. It has 30.0µin (0.76µm) of contact finishing thickness. The product features a non specified - dual edge card type. It has a classic black colour. Moreover, the product is 0.031" (0.80mm). It is designed from highly reliable thermoplastic, glass filled insulating material. The product has -40°c ~ 85°c operating temperature range. Furthermore, the product is galvanized with excellent gold contact finishing. In addition, tray is the available packaging type of the product. It features dual read values. A typical product' card thickness is 0.063" (1.60mm). The product edgeline 76691, is a highly preferred choice for users. The product features press-fit termination style. The product carries possible position value of 108. The molex's product offers user-desired applications.
