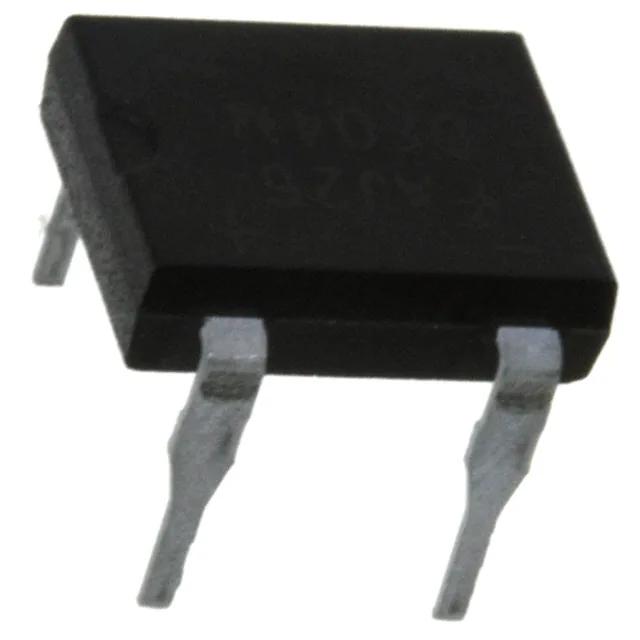

ON Semiconductor DF04M
Product Information
Peak Reverse Current:
5µA
Dimensions:
8.51 x 6.48 x 3.3mm
Bridge Type:
Single Phase
Peak Non-Repetitive Forward Surge Current:
50A
Peak Average Forward Current:
1.5A
Height:
3.3mm
Peak Forward Voltage:
1.1V
Width:
6.48mm
Length:
8.51mm
Package Type:
PDIP
Peak Reverse Repetitive Voltage:
400V
Minimum Operating Temperature:
-55 °C
Mounting Type:
Through Hole
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
Manufacturer Standard Lead Time:
34 Weeks
Base Part Number:
DF04
Detailed Description:
Bridge Rectifier Single Phase Standard 400V Through Hole 4-DIP
Current - Reverse Leakage @ Vr:
5µA @ 400V
Voltage - Forward (Vf) (Max) @ If:
1.1V @ 1A
Mounting Type:
Through Hole
Current - Average Rectified (Io):
1.5A
Supplier Device Package:
4-DIP
Voltage - Peak Reverse (Max):
400V
Packaging:
Tube
Operating Temperature:
-55°C ~ 150°C (TJ)
Customer Reference:
Package / Case:
4-EDIP (0.300", 7.62mm)
Diode Type:
Single Phase
Technology:
Standard
Manufacturer:
ON Semiconductor
Checking for live stock
FAQs
Yes. You can also search DF04M on website for other similar products.
We accept all major payment methods for all products including ET14516267. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with DF04M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Diodes - Bridge Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor DF04M. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor DF04M.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14516267 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14516267.
Yes. We ship DF04M Internationally to many countries around the world.
This is manufactured by ON Semiconductor. The manufacturer part number is DF04M. It has a typical 5µa peak reverse current . The given dimensions of the product include 8.51 x 6.48 x 3.3mm. It contains a/an single phase type bridge . Moreover, a bespoke product has 50a peak non-repetitive forward surge current. Additionally, it has about 1.5a of peak average forward current . In addition, the height is 3.3mm. Whereas, the peak forward voltage is about 1.1v . Furthermore, the product is 6.48mm wide. Its accurate length is 8.51mm. The package is a sort of pdip. While having the peak reverse repetitive 400v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in through hole configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins. It has typical 34 weeks of manufacturer standard lead time. Base Part Number: df04. It features bridge rectifier single phase standard 400v through hole 4-dip. 5µa @ 400v is the reverse leakage value of a bespoke product. The product has a maximum forward voltage of 1.1v @ 1a. It features a 1.5a of average rectified current. 4-dip is the supplier device package value. The maximum peak reverse voltage is 400v. In addition, tube is the available packaging type of the product. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 4-edip (0.300", 7.62mm). It is designed with a single phase diode. This product use standard technology. The on semiconductor's product offers user-desired applications.
