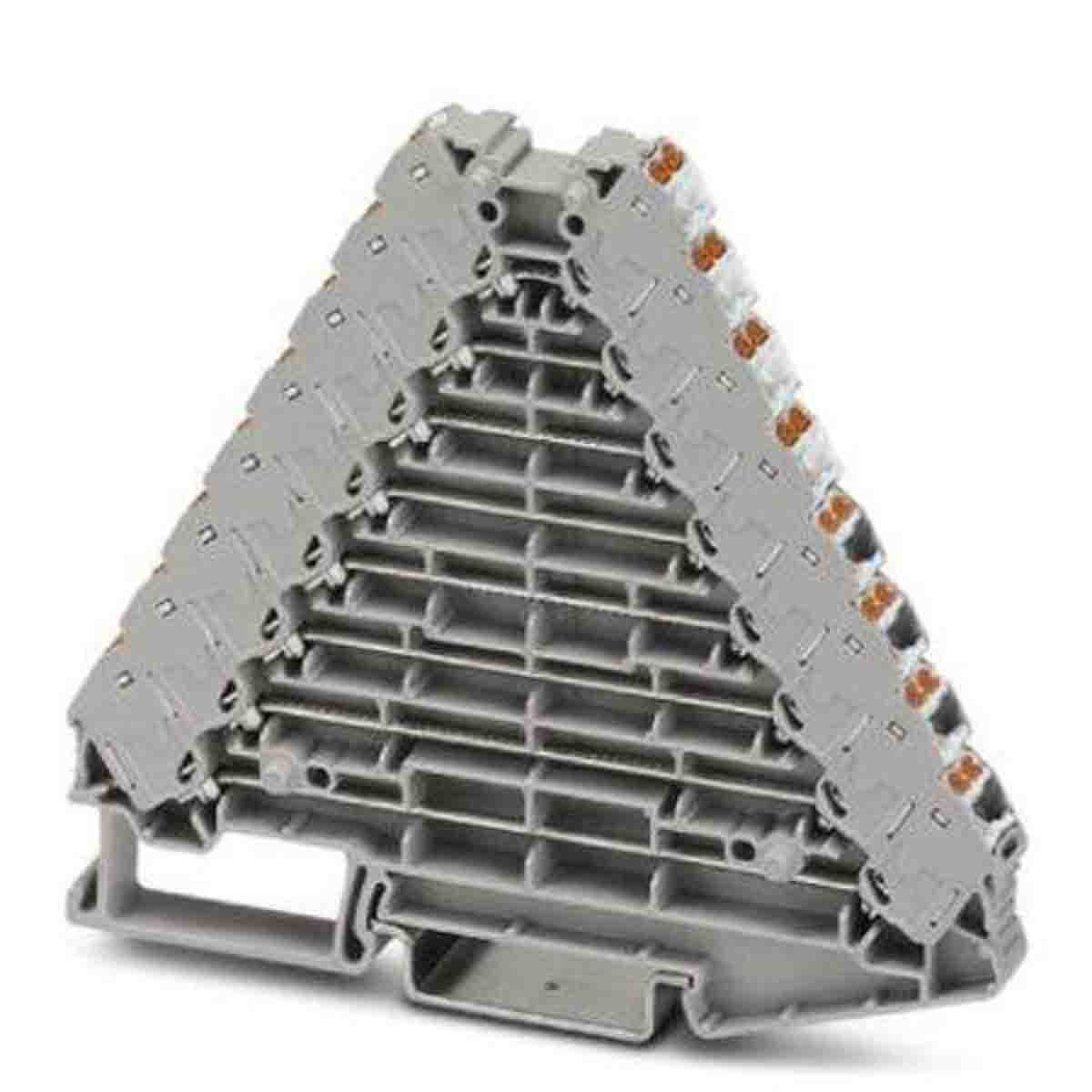

Phoenix Contact, PTRV, 250 V Non-Fused DIN Rail Terminal, Push In Termination
Product Information
American Wire Gauge:
14 → 26AWG
Current Rating:
8A
Voltage Rating:
250 V
Series:
PTRV
Colour:
Grey
Model Number:
PTRV 8 /WH
Termination Method:
Push In
Cable CSA:
0.14 → 2.5mm²
HTSUS:
8536.90.4000
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-60°C ~ 105°C
Type:
Marshalling Connector
Number of Positions:
32
Wire Gauge or Range - mm²:
0.14-2.5mm²
Height (Max):
3.740" (95.00mm)
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm ~ 10mm
Current - IEC:
8 A
Number of Levels:
8
Wire Gauge or Range - AWG:
14-26 AWG
Voltage - UL:
300 V
standardLeadTime:
8 Weeks
Terminal - Width:
8.3mm
Voltage - IEC:
250 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE PT
Length:
3.937" (100.00mm)
Current - UL:
10 A
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1061721 on website for other similar products.
We accept all major payment methods for all products including ET19996579. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1061721 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIN Rail Terminal Blocks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact, PTRV, 250 V Non-Fused DIN Rail Terminal, Push In Termination. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact, PTRV, 250 V Non-Fused DIN Rail Terminal, Push In Termination.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET19996579 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET19996579.
Yes. We ship 1061721 Internationally to many countries around the world.
This is PTRV 250 V Non-Fused DIN Rail Terminal Push In Termination manufactured by Phoenix Contact. The manufacturer part number is 1061721. Features 14 → 26awg - American Wire Gauge. The product has a current rating of 8a. Moreover, the product has a nominal 250 v voltage rating. The product ptrv, is a highly preferred choice for users. It has a decent grey colour. It has a model number ptrv 8 /wh. It allows push in termination method. The cross section area of the cable includes 0.14 → 2.5mm². It is assigned with possible HTSUS value of 8536.90.4000. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. The product has -60°c ~ 105°c operating temperature range. It comes in marshalling connector configuration. The product carries possible position value of 32. A 0.14-2.5mm² of wire gauge. Additionally, the 3.740" (95.00mm) is the maximum height of the product. It has an integral gray housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . It has a stripping length of 8mm ~ 10mm. An IEC current of 8 a. The product carries 8 levels. While 14-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It has a long 8 weeks standard lead time. The built-in terminal is 8.3mm wide. The nominal voltage of the product is 250 v. The product is available in din rail configuration. The product clipline pt, is a highly preferred choice for users. Its accurate length is 3.937" (100.00mm). The typical current includes 10 a. The product is designated with the ear99 code number.
