Name: WDK 2.5N BL -1041680000, Weidmuller
Brand: Weidmuller
SKU: ET16922737
Price: 1.87 GBP
Availability: InStock

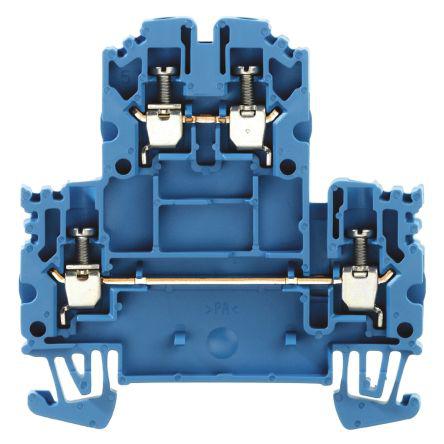

The WDK 2.5N BL is a modular, double-level terminal block from Weidmüller’s W-Series designed for high-voltage applications and efficient PCB/rail mounting. It offers robust connectivity for demanding electrical installations. Its screw-clamp connection technology, two levels per terminal, and compact width of 5.1 mm support dual-circuit layout in space-constrained control panels and cabinets.

Standout Features and Benefits of Choosing the Weidmuller Double Level Terminal Block

Rated voltage up to 800 V DC/AC for high-voltage compatibility.
Nominal current of 24 A (28 A max) supports substantial load demands.
Dual-level (double tier) design enables two circuits in one footprint.
Screw-clamp connection ensures secure and reliable conductor termination.
Compact width (5.1 mm) with DIN-rail mounting (TS 35) optimises panel space.
UL 94 V-0 (flame rating) insulating material and halogen-free construction align with modern safety standards.
Supports clamping of two conductors per level (equal cross-sections), facilitating flexible wiring.

Engineered for High-Voltage, High-Density Wiring Installations

The WDK 2.5N BL is tailored to the rigours of industrial control and power distribution systems where high voltage, compact wiring, and clean installation matter. The rugged screw-clamp mechanism ensures durable electrical contact, even in vibration-prone installations. With its compact footprint, TS 35 mounting compatibility and compliance with major international standards (including IEC 60947-7-1) the W-Series terminal block is designed for reliability and longevity in industrial settings.

Product Use Cases

Wiring of dual-circuit feeds in industrial control cabinets.
High-voltage distribution terminals in photovoltaic or renewable-energy systems.
Compact panel assemblies where space is at a premium.
OEM equipment requiring two-level termination per pole for signal/control and power separation.
Rail-mounted assemblies (TS 35) for automation or PLC-based systems.
