Number of Levels:
3
Fused:
No
Termination Type:
Push-in
Series:
PTI
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
24 AWG
Hazardous Area Certification:
No
Standards/Approvals:
IEC 60947-7-1, UL, VDE, CSA, cUL, cULus, DNV GL, EAC, IECEE CB
Voltage:
400 V
Cable CSA:
0.2 to 6 mm²
Maximum Wire Size AWG:
10 AWG

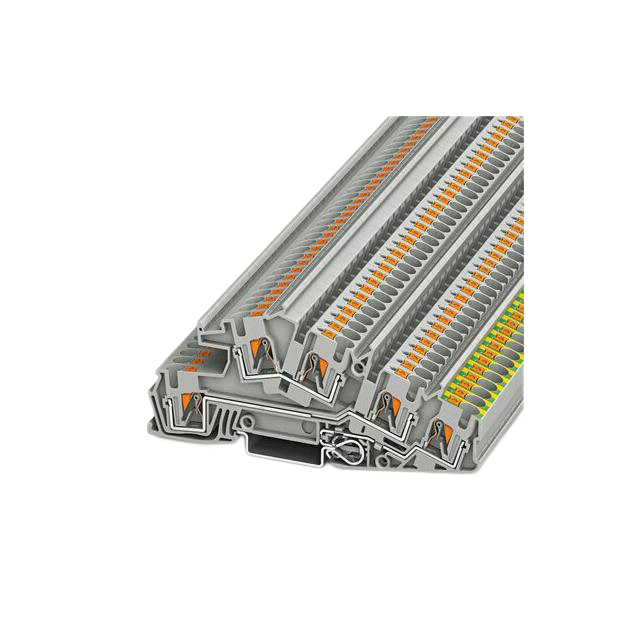

Product Type:
DIN Rail Terminal Block
Maximum Operating Temperature:
105°C
Terminal Block Current:
28A
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Push In
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through (2), Isolated
Number of Positions:
5
Wire Gauge or Range - mm²:
0.2-6mm²
title:
3214050
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
10mm ~ 12mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
28 A
Number of Levels:
3; 1 Grounded
Wire Gauge or Range - AWG:
8-20 AWG
Voltage - UL:
300V
standardLeadTime:
8 Weeks
Terminal - Width:
6.2mm
Disconnect Type:
-
Voltage - IEC:
400V
Features:
-
Color:
Gray
Series:
CLIPLINE PTI
Packaging:
Bulk
Fuse Type:
-
Current - UL:
27 A
ECCN:
EAR99
