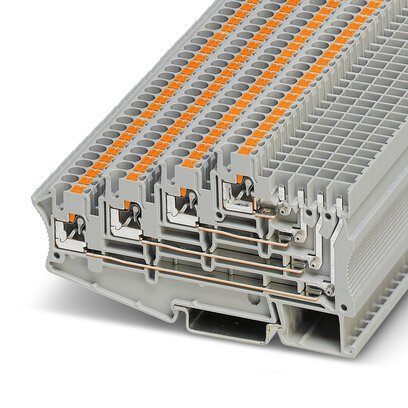

Phoenix Contact 3012300
Product Information
Number of Levels:
Quadruple
Current Rating:
10A
Voltage Rating:
250 V
Series:
PT 2.5-4L/1P
Colour:
Grey
Model Number:
PT 2,5-4L/1P
Minimum Operating Temperature:
-60°C
Termination Method:
Push In
Cable CSA:
0.14 → 4mm²
Maximum Operating Temperature:
+125°C
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
8
Wire Gauge or Range - mm²:
0.14-4mm²
Height (Max):
2.618" (66.50mm)
edacadModel:
3012300 Models
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5198643
Package:
Box
Stripping Length:
8mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
10 A
Number of Levels:
4
Wire Gauge or Range - AWG:
12-26 AWG
standardLeadTime:
6 Weeks
Terminal - Width:
5.2mm
Voltage - IEC:
250 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE COMBI PT
Length:
4.157" (105.60mm)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 3012300 on website for other similar products.
We accept all major payment methods for all products including ET14630797. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 3012300 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIN Rail Terminal Blocks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 3012300. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 3012300.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14630797 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14630797.
Yes. We ship 3012300 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 3012300. The product carries quadruple levels. The product has a current rating of 10a. Moreover, the product has a nominal 250 v voltage rating. The product pt 2.5-4l/1p, is a highly preferred choice for users. It has a decent grey colour. It has a model number pt 2,5-4l/1p. Whereas, the minimum operating temperature of the product is -60°c. It allows push in termination method. The cross section area of the cable includes 0.14 → 4mm². It has a maximum operating temperature of +125°c. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs compliant. Moreover, it has plug receptacles, push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in plug connection configuration. The product carries possible position value of 8. A 0.14-4mm² of wire gauge. Additionally, the 2.618" (66.50mm) is the maximum height of the product. It has an integral gray housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in box package . It has a stripping length of 8mm. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 10 a. The product carries 4 levels. While 12-26 awg is its range or wire gauge. It has a long 6 weeks standard lead time. The built-in terminal is 5.2mm wide. The nominal voltage of the product is 250 v. The product is available in din rail configuration. The product clipline combi pt, is a highly preferred choice for users. Its accurate length is 4.157" (105.60mm). The product is designated with the ear99 code number.
