Number of Levels:
2
Fused:
No
Termination Type:
Push-in
Series:
PTTBS
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
18A
Hazardous Area Certification:
No
Standards/Approvals:
IEC 60947-7-1, UL, CSA, cUL, cULus, DNV GL, EAC, LR
Voltage:
500 V
Cable CSA:
0.14 to 4 mm²
Maximum Wire Size AWG:
12 AWG

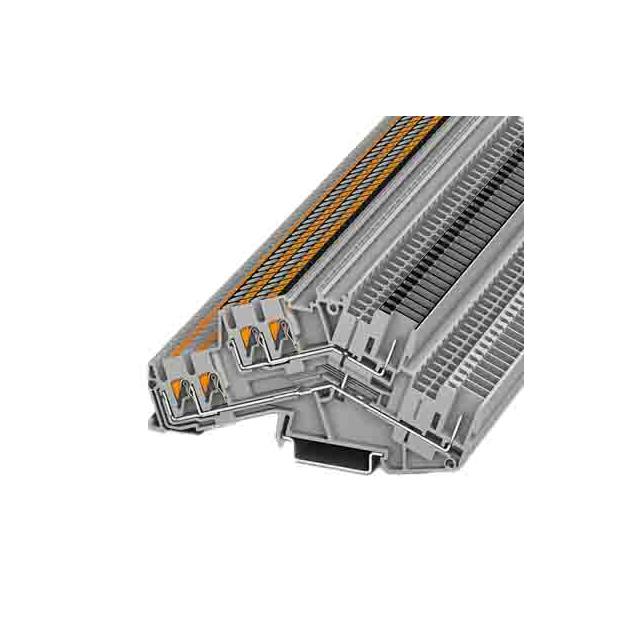

Product Type:
Double Level Terminal Block
Sub Type:
Multi-Level
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
6
Wire Gauge or Range - mm²:
0.14-4mm²
Height (Max):
2.461" (62.50mm)
title:
3210607
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
18 A
Number of Levels:
2; Connected
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
600 V
standardLeadTime:
6 Weeks
Terminal - Width:
5.2mm
Voltage - IEC:
500 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE COMBI PT
Length:
4.402" (111.80mm)
Packaging:
Bulk
Current - UL:
20 A
ECCN:
EAR99
