Number of Levels:
2
Fused:
No
Termination Type:
Push-in
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
16A
Hazardous Area Certification:
No
Standards/Approvals:
Bureau Veritas, CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, IEC 60947-7-2, LR, NK, UL
Voltage:
500 V
Cable CSA:
0.14 to 1.5 mm²
Maximum Wire Size AWG:
14 AWG

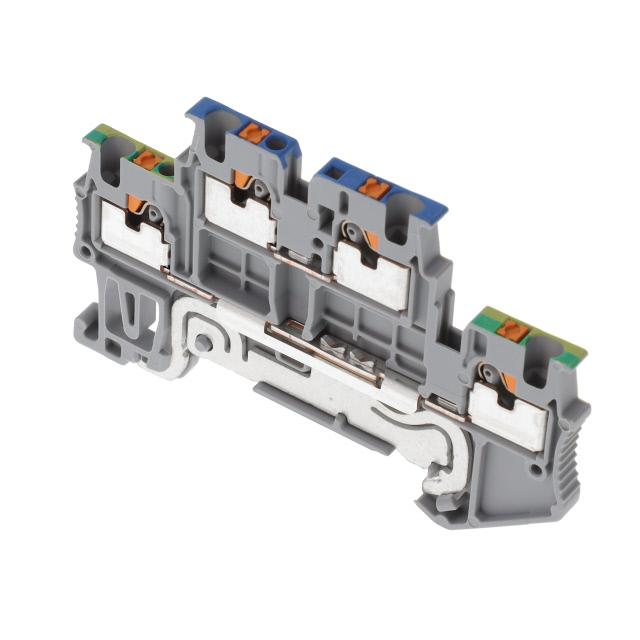

Product Type:
Double Level Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Double-Level
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-1.5mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
16 A
Wire Gauge or Range - AWG:
14-26 AWG
Voltage - UL:
600V
standardLeadTime:
8 Weeks
Terminal - Width:
3.5mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
-
Color:
Gray
Series:
CLIPLINE PTTB
Fuse Type:
-
Current - UL:
5 A
Number of Levels:
2; 1 Grounded
ECCN:
EAR99
