Number of Levels:
2
Fused:
No
Termination Type:
Quick Connect
Series:
QTTCB
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
24 AWG
Terminal Block Current:
17.5A
Hazardous Area Certification:
ATEX, IECEx
Standards/Approvals:
IECEX, ABS, ATEX, Bureau Veritas, CSA, cUL Recognised, cULus Recognised, DNV GL, EAC, EAC Ex, IEC 60947-7-1, LR, NK, UL Recognised
Voltage:
500 V
Cable CSA:
0.25 to 1.5 mm²
Maximum Wire Size AWG:
16 AWG

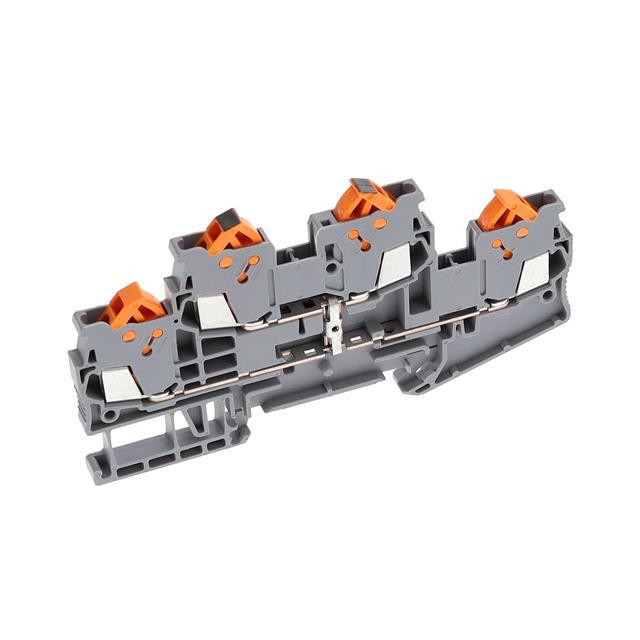

Product Type:
Double Level Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Multi-Level
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
IDC
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
4
Wire Gauge or Range - mm²:
0.25-1.5mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
17.5 A
Wire Gauge or Range - AWG:
16-24 AWG
Voltage - UL:
300V
standardLeadTime:
5 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
-
Color:
Gray
Series:
CLIPLINE QTTCB
Fuse Type:
-
Current - UL:
10 A
Number of Levels:
2; Connected
ECCN:
EAR99
