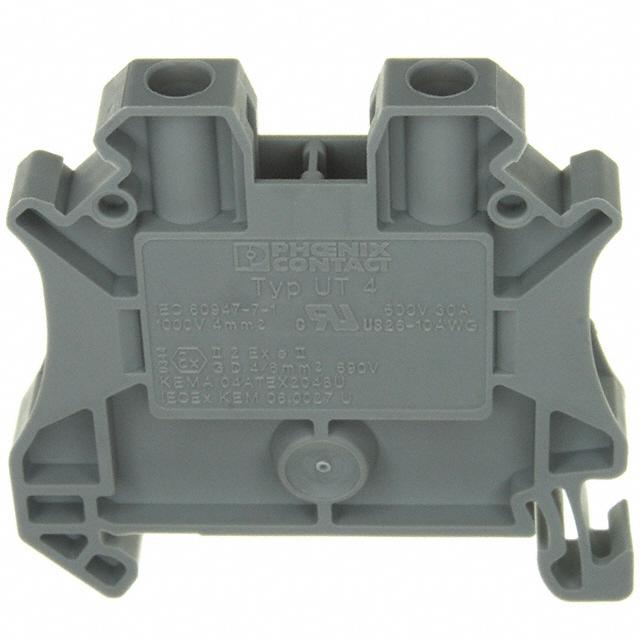

Phoenix Contact 3044102
Product Information
Number of Levels:
Single
Current Rating:
32A
Standards Met:
ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL
Voltage Rating:
1 kV
Series:
UT 4
Colour:
Grey
Model Number:
UT 4
Hazardous Area Certification:
ATEX
American Wire Gauge:
26 → 12AWG
Minimum Operating Temperature:
-60°C
Termination Method:
Screw
Cable CSA:
0.14 → 4mm²
Maximum Operating Temperature:
+110°C
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
2
Wire Gauge or Range - mm²:
0.14-6mm²
REACH Status:
REACH Affected
Material Flammability Rating:
UL94 V-0
Package:
Box
Stripping Length:
9mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
32 A
Wire Gauge or Range - AWG:
10-26 AWG
Voltage - UL:
600V
standardLeadTime:
5 Weeks
Terminal - Width:
6.2mm
Disconnect Type:
-
Voltage - IEC:
1000V
Features:
-
Color:
Gray
Series:
CLIPLINE UT
Fuse Type:
-
Current - UL:
30 A
Number of Levels:
1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 3044102 on website for other similar products.
We accept all major payment methods for all products including ET12253794. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 3044102 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIN Rail Terminal Blocks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 3044102. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 3044102.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12253794 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12253794.
Yes. We ship 3044102 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 3044102. The product carries single levels. The product has a current rating of 32a. The product complies with all safety standards, such as atex, ccc, csa, culus, eac ex, iecex, ul. Moreover, the product has a nominal 1 kv voltage rating. The product ut 4, is a highly preferred choice for users. It has a decent grey colour. It has a model number ut 4. The product is certified with atex hazardous area certification. Features 26 → 12awg - American Wire Gauge. Whereas, the minimum operating temperature of the product is -60°c. It allows screw termination method. The cross section area of the cable includes 0.14 → 4mm². It has a maximum operating temperature of +110°c. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has screw terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in feed through configuration. The product carries possible position value of 2. A 0.14-6mm² of wire gauge. In addition, it is reach affected. It carries ul94 v-0 of material flammability rating. It is shipped in box package . It has a stripping length of 9mm. Its typical moisture sensitivity level is not applicable. An IEC current of 32 a. While 10-26 awg is its range or wire gauge. While 600v is the typical voltage of the product. It has a long 5 weeks standard lead time. The built-in terminal is 6.2mm wide. The nominal voltage of the product is 1000v. It has a classic gray colour. The product clipline ut, is a highly preferred choice for users. The typical current includes 30 a. The product carries 1 levels. The product is designated with the ear99 code number.
