Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Colour:
Blue
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
12 AWG
Terminal Block Current:
24A
Number of Positions:
1
Hazardous Area Certification:
No
Standards/Approvals:
ABS, Bureau Veritas, CSA, cUL, cULus, DNV GL, EAC, IEC 61984, LR, NK, UL, RS
Voltage:
500 V
Cable CSA:
4 mm²
Maximum Wire Size AWG:
12 AWG

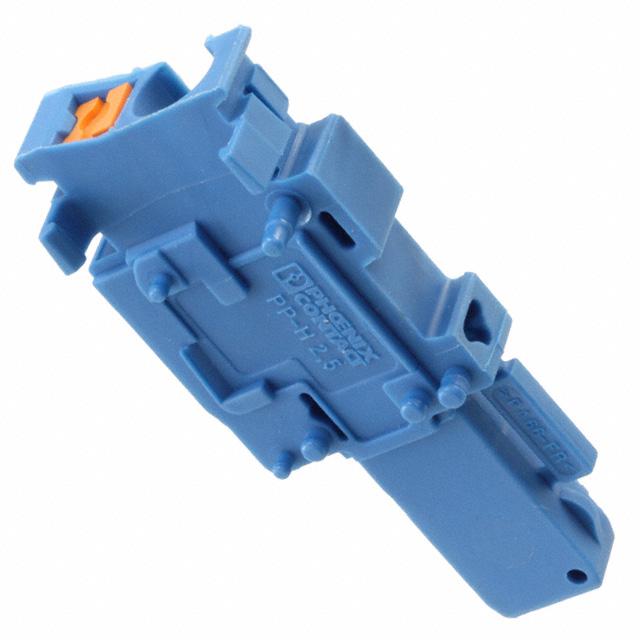

Product Type:
Combi Plug
Maximum Operating Temperature:
105°C
Sub Type:
Terminal
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screwless - Push-In Spring
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
10mm
Type:
Plug, Female Sockets
Number of Positions:
1
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.14-4mm²
title:
3210101
Plug Wire Entry:
180°
Insulation Height:
1.535" (39.00mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
8 Weeks
Contact Mating Finish:
-
Voltage - IEC:
500 V
Ingress Protection:
-
Features:
Interlocking (Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Blue
Series:
CLIPLINE COMBI PP-H
Positions Per Level:
1
Packaging:
Bulk
Header Orientation:
-
Current - UL:
20 A
Pitch:
-
Contact Material:
-
ECCN:
EAR99
