Number of Levels:
1
Fused:
No
Termination Type:
Plug-In
Series:
ST 4-QUATTRO
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
28 AWG
Terminal Block Current:
32A
Hazardous Area Certification:
No
Standards/Approvals:
cULus, EAC, IEC 61984, IECEE CB, UL, VDE, CSA, cUL
Voltage:
800 V
Cable CSA:
0.08 to 6 mm²
Maximum Wire Size AWG:
10 AWG

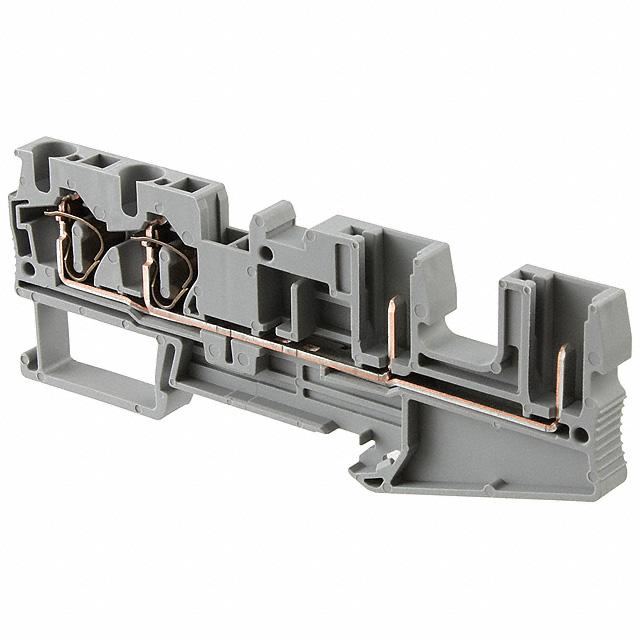

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Plug-In
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
4
Wire Gauge or Range - mm²:
0.08-6mm²
Height (Max):
1.732" (44.00mm)
REACH Status:
REACH Unaffected
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
32 A
Number of Levels:
1
Wire Gauge or Range - AWG:
10-28 AWG
Voltage - UL:
600 V
standardLeadTime:
8 Weeks
Terminal - Width:
6.2mm
Voltage - IEC:
800 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE ST
Length:
3.925" (99.70mm)
Current - UL:
30 A
ECCN:
EAR99
