HTSUS:
8536.90.4000
Termination Style:
Push In
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
4
Wire Gauge or Range - mm²:
0.2-6mm²
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
9mm ~ 11mm
Current - IEC:
32 A
Wire Gauge or Range - AWG:
10-26 AWG
Voltage - UL:
1000V
standardLeadTime:
12 Weeks
Terminal - Width:
6.2mm
Disconnect Type:
-
Voltage - IEC:
1000V
Features:
-
Color:
Red
Series:
CLIPLINE PTV
Fuse Type:
-
Current - UL:
30 A
Number of Levels:
1
ECCN:
EAR99
Number of Levels:
1
Minimum Operating Temperature:
60°C
Series:
PTV 4-QUATTRO RD
Colour:
Red
Minimum Wire Size AWG:
24 AWG
Hazardous Area Certification:
UKCA-EX, IECEx, EAC Ex, ATEX
Standards/Approvals:
VDE Zeichengenehmigung, UKCA-EX, IECEX, IECEE CB Scheme, IEC 60947-7-1, EAC Ex, EAC, cULus Recognised, CSA, CCC, ATEX
Voltage:
1000 V
Termination Type:
Push-in
Pitch:
6.2mm
Cable CSA:
4 mm²
Maximum Wire Size AWG:
10 AWG
Product Type:

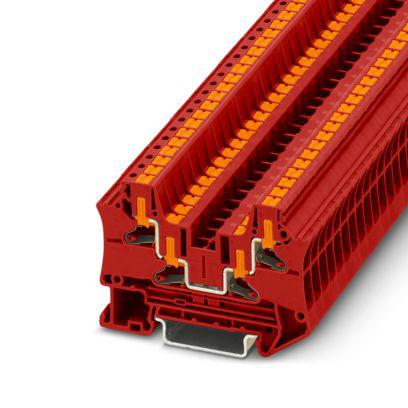

Feed Through Terminal Block
Maximum Operating Temperature:
110°C
Terminal Block Current:
32A
