Number of Levels:
4
Terminal Block Current:
18A
Minimum Operating Temperature:
60°C
Series:
13363
Colour:
Grey
Minimum Wire Size AWG:
26 AWG
Number of Positions:
4
Hazardous Area Certification:
No
Standards/Approvals:
IEC 60947-7-2, IEC 60947-7-1, cULus, CSA
Voltage:
50 V
Termination Type:
Push-in
Pitch:
5.2mm
Cable CSA:
0.14 mm²
Maximum Wire Size AWG:
12 AWG

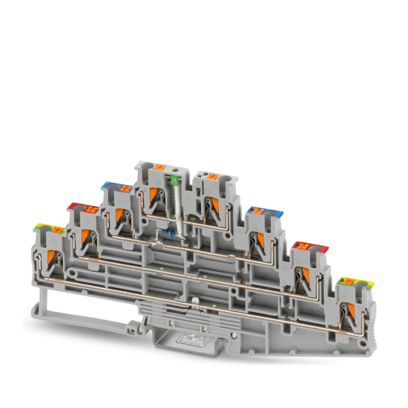

Product Type:
Multi Level Terminal Block
Maximum Operating Temperature:
110°C
Sub Type:
Multi Level Terminal Block
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
8
Wire Gauge or Range - mm²:
0.14-4mm²
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm ~ 10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
18 A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
500V
standardLeadTime:
10 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
Diode, LED
Color:
Gray
Series:
CLIPLINE PT
Fuse Type:
-
Current - UL:
18 A
Number of Levels:
4; 2 Connected, 1 Grounded
ECCN:
EAR99
