Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Series:
PT 16 N BU
Colour:
Blue
Minimum Wire Size AWG:
20 AWG
Terminal Block Current:
90A
Number of Positions:
2
Hazardous Area Certification:
No
Standards/Approvals:
EAC, DNV, cULus Recognised, cUL Recognised, CSA, CCC, Bureau Veritas, ATEX, IEC 60947-7-1, VDE, UL Recognised, PRS, NEPSI, LR, IECEX, IECEE CB Scheme, EAC Ex
Voltage:
1 kV
Cable CSA:
0.5 to 25 mm²
Maximum Wire Size AWG:
4 AWG
Product Type:

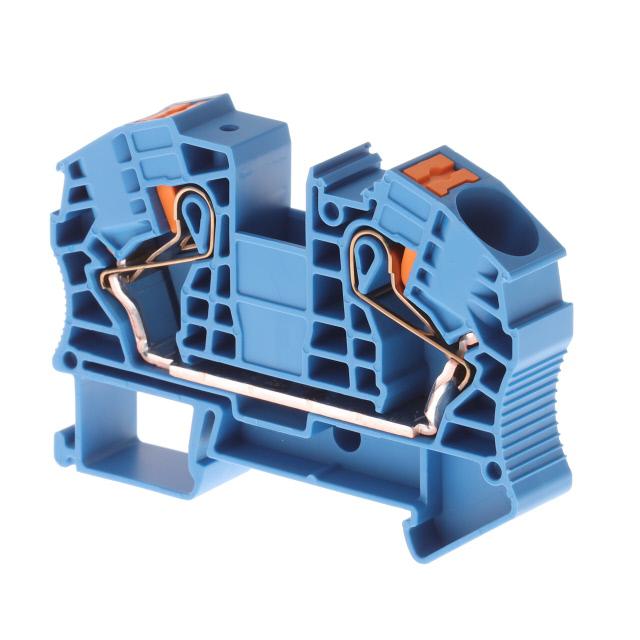

Feed Through Terminal Block
Sub Type:
Feed Through
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
2
Wire Gauge or Range - mm²:
0.5-25mm²
title:
3212142
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
18mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
76 A
Number of Levels:
1
Wire Gauge or Range - AWG:
4-20 AWG
Voltage - UL:
600V
standardLeadTime:
4 Weeks
Terminal - Width:
12.2mm
Disconnect Type:
-
Voltage - IEC:
1000V
Features:
-
Color:
Blue
Series:
CLIPLINE PT
Packaging:
Box
Fuse Type:
-
Current - UL:
85 A
ECCN:
EAR99
