Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Colour:
Yellow
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
24A
Hazardous Area Certification:
IECEx/ATEX
Standards/Approvals:
Bureau Veritas, CSA, cUL, cULus, DNV GL, LR, NK, RS, EAC, UL, IEC 60947-7-1, ABS
Voltage:
800 V
Cable CSA:
0.14 to 4 mm²
Maximum Wire Size AWG:
12 AWG

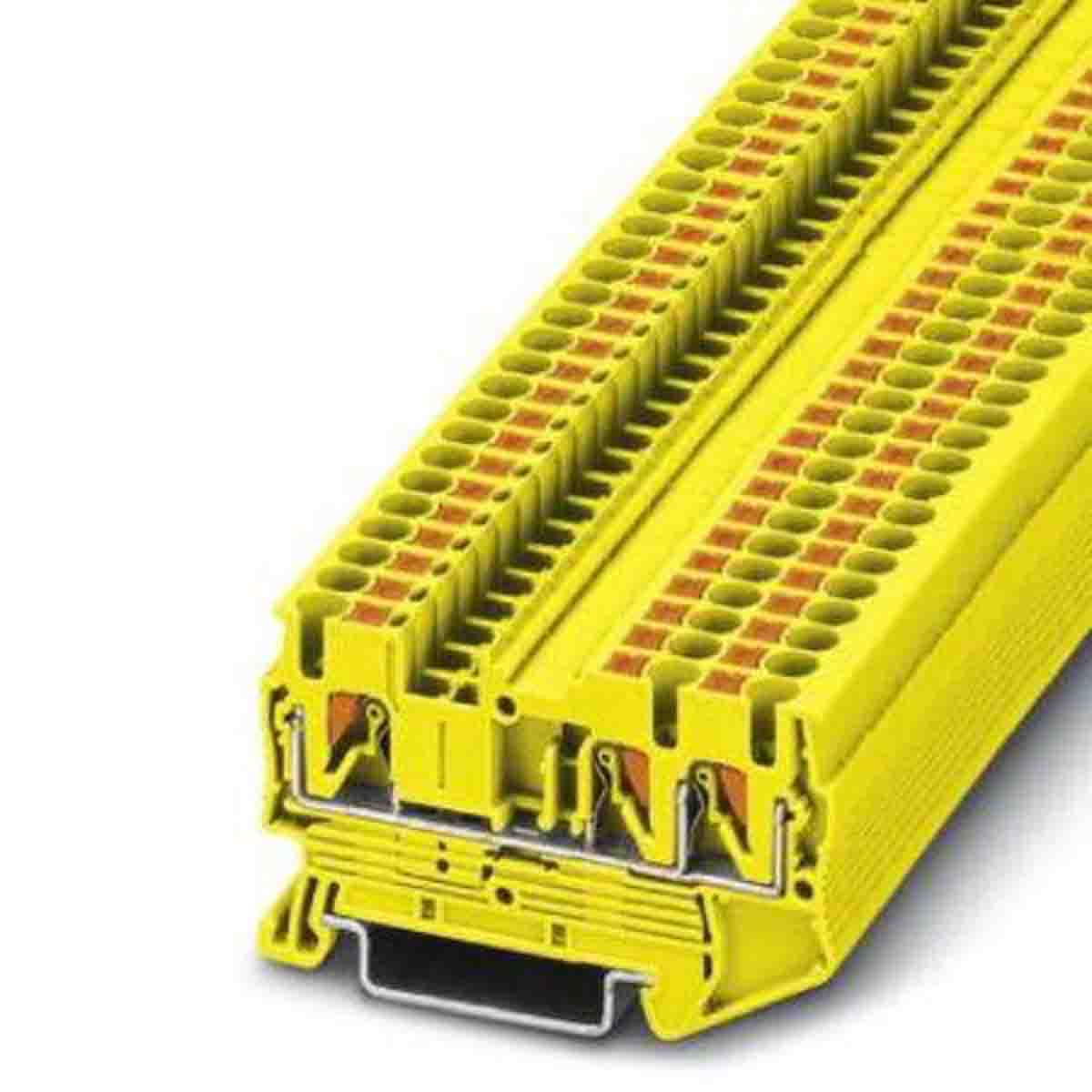

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Multi-Conductor
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
3
Wire Gauge or Range - mm²:
0.14-4mm²
Material Flammability Rating:
UL94 V-0
Package:
Box
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24 A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
-
standardLeadTime:
11 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
800V
Features:
-
Color:
Yellow
Series:
CLIPLINE PT
Fuse Type:
-
Number of Levels:
1
ECCN:
EAR99
