Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Colour:
Yellow
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
17.5A
Hazardous Area Certification:
IECEx/ATEX
Standards/Approvals:
LR, IEC 60947-7-1, EAC, DNV GL, cULus, cUL, RS, CSA, Bureau Veritas, ABS, UL, NK
Voltage:
500 V
Cable CSA:
0.14 to 1.5 mm²
Maximum Wire Size AWG:
14 AWG

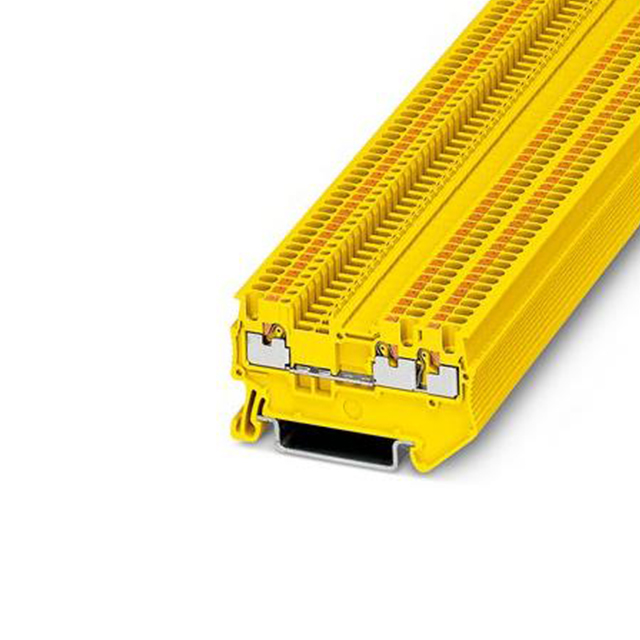

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Feed Through
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Push In
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
3
Wire Gauge or Range - mm²:
0.14-1.5mm²
title:
3208159
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
8mm ~ 10mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
17.5 A
Number of Levels:
1
Wire Gauge or Range - AWG:
14-26 AWG
Voltage - UL:
300V
standardLeadTime:
7 Weeks
Terminal - Width:
3.5mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
-
Color:
Yellow
Series:
CLIPLINE PT
Packaging:
Bulk
Fuse Type:
-
Current - UL:
15 A
ECCN:
EAR99
