Number of Levels:
2
Fused:
No
Termination Type:
Push-in
Series:
PTTB
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Hazardous Area Certification:
No
Standards/Approvals:
CSA, UL, RS, NK, LR, EAC, DNV GL, cULus, cUL, Bureau Veritas, ABS
Voltage:
500 V
Cable CSA:
0.14 to 4 mm²
Maximum Wire Size AWG:
12 AWG

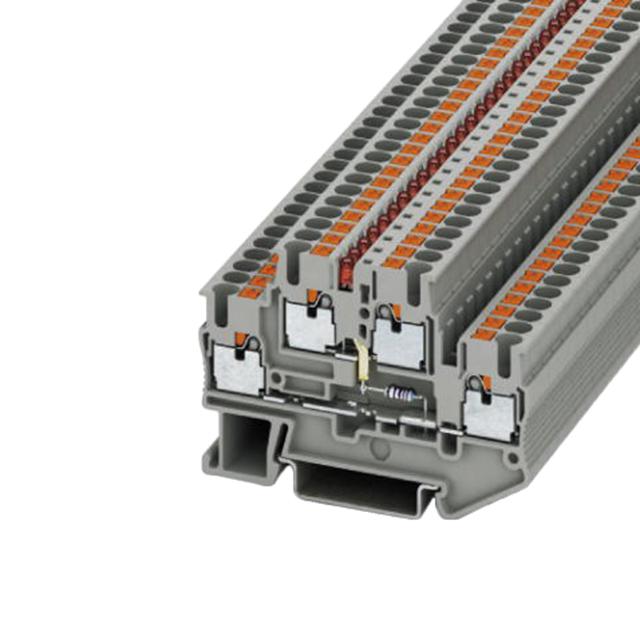

Product Type:
Double Level Terminal Block
Maximum Operating Temperature:
105°C
Terminal Block Current:
20A
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-4mm²
Material Flammability Rating:
UL94 V-0
Package:
Box
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
20 A
Wire Gauge or Range - AWG:
12-24 AWG
Voltage - UL:
300V
standardLeadTime:
9 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
LED
Color:
Gray
Series:
CLIPLINE PTTB
Fuse Type:
-
Current - UL:
20 A
Number of Levels:
2; Connected
ECCN:
EAR99
