Number of Levels:
2
Fused:
No
Termination Type:
Push-in
Series:
PTTBS
Colour:
Yellow, Green
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Hazardous Area Certification:
No
Standards/Approvals:
UL, RS, LR, IEC 60947-7-1, EAC, DNV GL, cULus, cUL, CSA
Voltage:
500 V
Cable CSA:
0.14 to 4 mm²
Maximum Wire Size AWG:
12 AWG

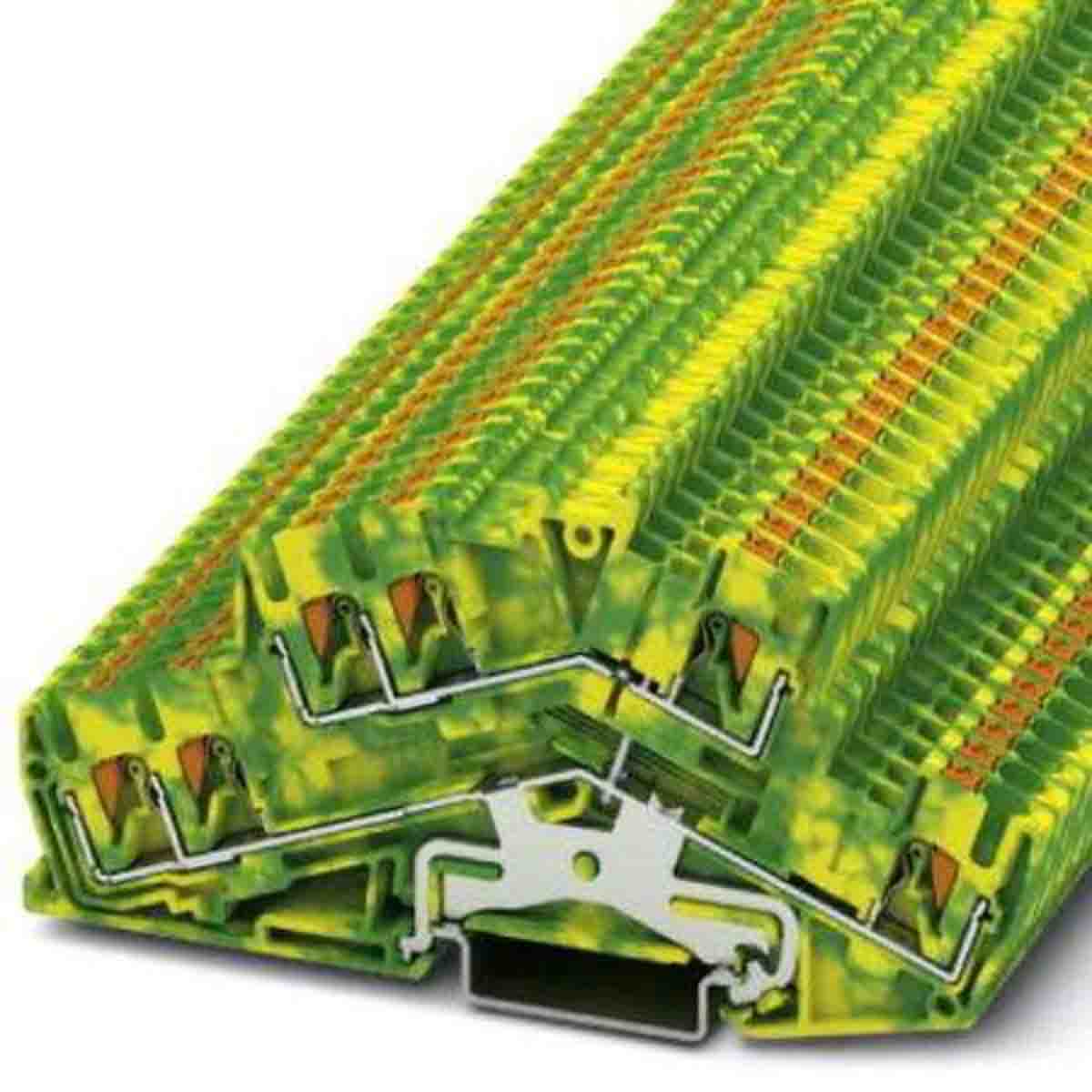

Product Type:
Double Level Terminal Block
Maximum Operating Temperature:
105°C
Terminal Block Current:
24A
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Ground, Earth
Number of Positions:
6
Wire Gauge or Range - mm²:
0.14-4mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
-
standardLeadTime:
4 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
-
Features:
-
Color:
Green, Yellow
Series:
CLIPLINE PTTB
Fuse Type:
-
Number of Levels:
2
ECCN:
EAR99
