Number of Levels:
1
Fused:
No
Termination Type:
Screw
Series:
UT 4
Colour:
Red
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
32A
Hazardous Area Certification:
IECEx/ATEX
Standards/Approvals:
CSA, cUL, cULus, DNV GL, EAC, IEC 60947-7-1, IECEE CB, LR, PRS, RS, UL, VDE
Voltage:
500 V
Cable CSA:
0.14 to 6 mm²
Maximum Wire Size AWG:
10 AWG

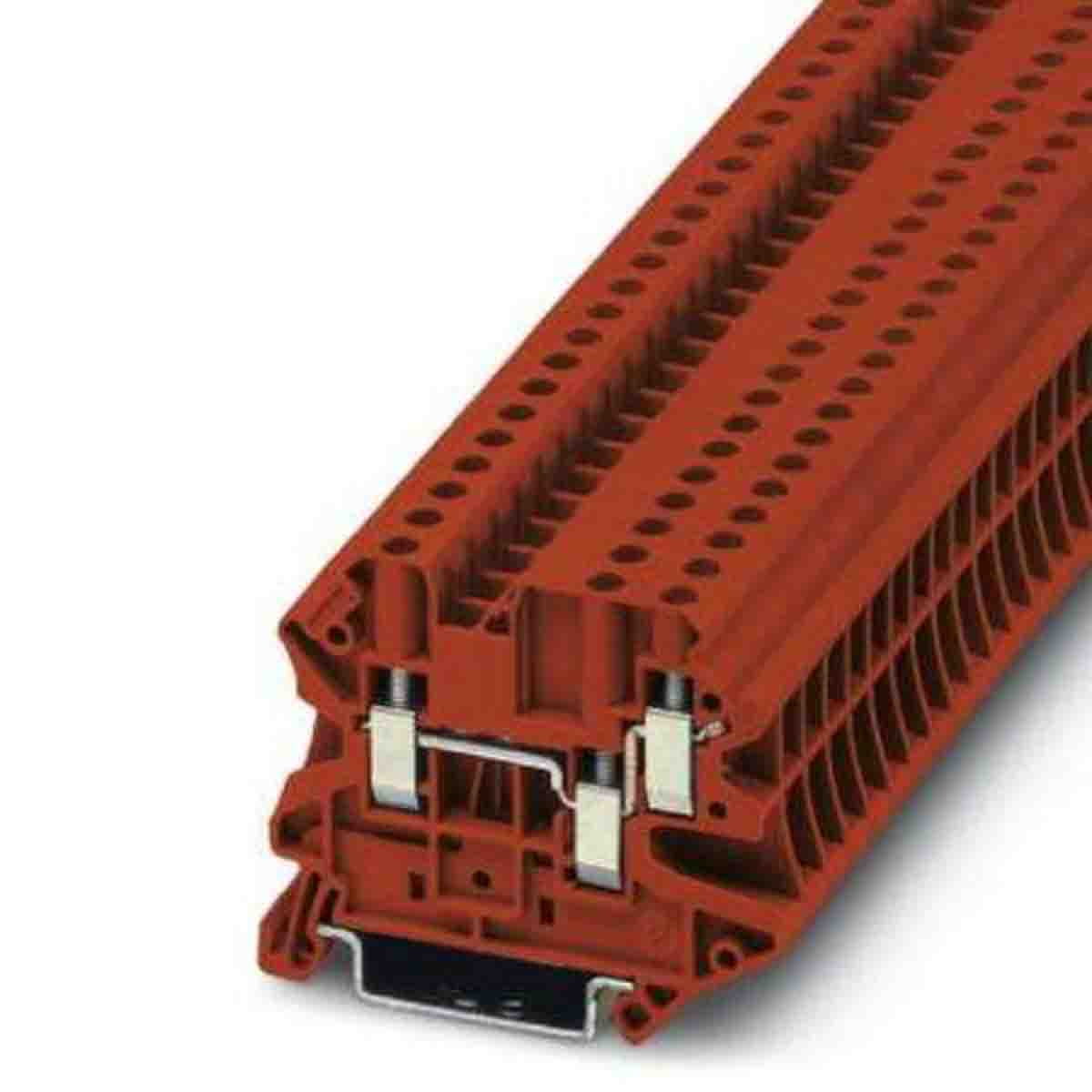

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Feed Through
Manufacturer Standard Lead Time:
4 Weeks
Wire Gauge or Range - mm²:
0.14-6mm²
Termination Style:
Screw
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
3
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
9mm
Standard Package:
50
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
32A
Number of Levels:
1
Wire Gauge or Range - AWG:
10-26 AWG
Voltage - UL:
150V
Terminal - Width:
6.2mm
Voltage - IEC:
500V
Color:
Red
Series:
CLIPLINE UT
Current - UL:
30A
