Number of Levels:
1
Fused:
No
Termination Type:
Spring Clamp
Series:
ST 10
Colour:
Blue
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
24 AWG
Terminal Block Current:
57A
Hazardous Area Certification:
No
Standards/Approvals:
cUL, Bureau Veritas, CSA, cULus, EAC, IEC 60947-7-1, IECEE CB, UL, VDE
Voltage:
1 kV
Cable CSA:
0.2 to 16 mm²
Maximum Wire Size AWG:
6 AWG
Product Type:

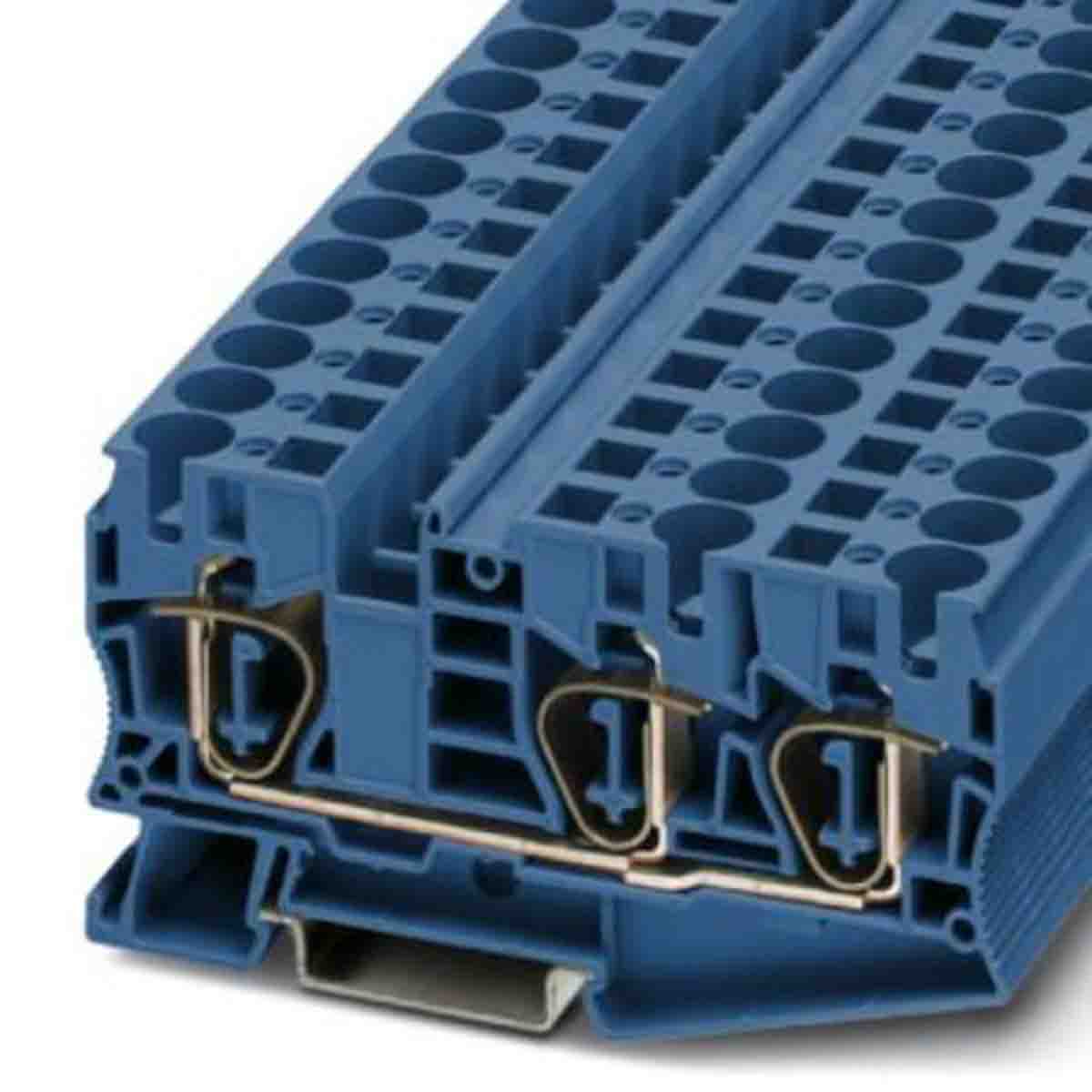

Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Multi-Conductor
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
3
Wire Gauge or Range - mm²:
0.2-16mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
15mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
57 A
Wire Gauge or Range - AWG:
6-16 AWG
Voltage - UL:
600V
standardLeadTime:
4 Weeks
Terminal - Width:
10.2mm
Disconnect Type:
-
Voltage - IEC:
800V
Features:
-
Color:
Blue
Series:
CLIPLINE ST
Fuse Type:
-
Current - UL:
60 A
Number of Levels:
1
ECCN:
EAR99
