Number of Levels:
1
Fused:
No
Termination Type:
Spring Clamp
Series:
ST 2.5 WH
Colour:
White
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
28 AWG
Terminal Block Current:
24A
Hazardous Area Certification:
No
Standards/Approvals:
EAC, VDE, RS, PRS, NK, NEPSI, LR, KR, IECEX, IECEE CB Scheme, IEC 60947-7-1, EAC Ex, DNV, cULus Recognised, CSA, CCC, Bureau Veritas, ATEX
Voltage:
800 V
Cable CSA:
2.5 mm²
Maximum Wire Size AWG:
12 AWG

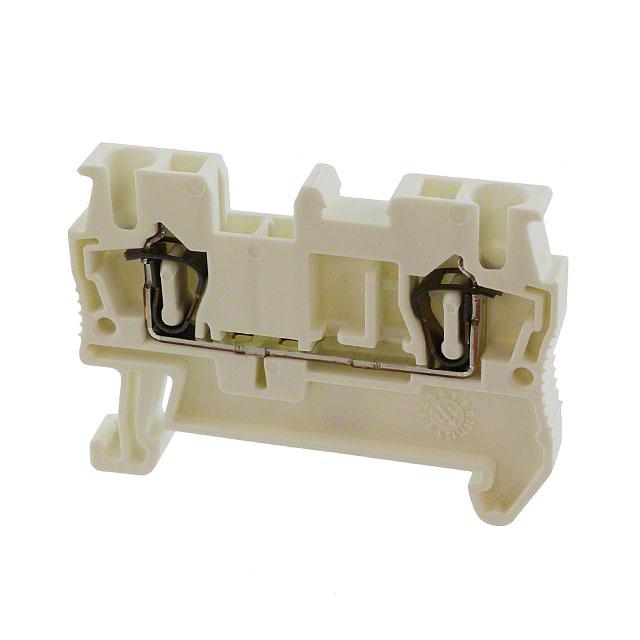

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Feed Through
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
2
Wire Gauge or Range - mm²:
0.08-4mm²
REACH Status:
REACH Unaffected
edacadModel:
3037119 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2527358
Package:
Bulk
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
24 A
Wire Gauge or Range - AWG:
12-28 AWG
Voltage - UL:
600V
standardLeadTime:
8 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
800V
Features:
-
Color:
White
Series:
CLIPLINE ST
Fuse Type:
-
Current - UL:
20 A
Number of Levels:
1
ECCN:
EAR99
