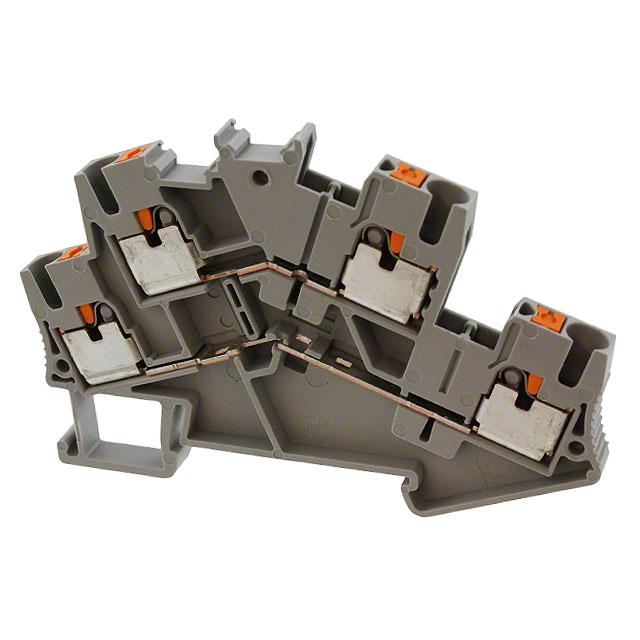

Phoenix Contact 3209604
Product Information
Number of Levels:
Double
Current Rating:
22A
Voltage Rating:
500 V
Series:
PTTBS 2.5
Colour:
Grey
Model Number:
5, PTTBS 2
Hazardous Area Certification:
ATEX
American Wire Gauge:
26 → 12AWG
Minimum Operating Temperature:
-60°C
Termination Method:
Push In
Cable CSA:
0.14 → 4mm²
Maximum Operating Temperature:
+105°C
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-4mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Box
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
22 A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
600V
standardLeadTime:
8 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
-
Color:
Gray
Series:
CLIPLINE PTTB
Fuse Type:
-
Current - UL:
20 A
Number of Levels:
2
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 3209604 on website for other similar products.
We accept all major payment methods for all products including ET11485128. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 3209604 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in DIN Rail Channel category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 3209604. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 3209604.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11485128 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11485128.
Yes. We ship 3209604 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 3209604. The product carries double levels. The product has a current rating of 22a. Moreover, the product has a nominal 500 v voltage rating. The product pttbs 2.5, is a highly preferred choice for users. It has a decent grey colour. It has a model number 5, pttbs 2. The product is certified with atex hazardous area certification. Features 26 → 12awg - American Wire Gauge. Whereas, the minimum operating temperature of the product is -60°c. It allows push in termination method. The cross section area of the cable includes 0.14 → 4mm². It has a maximum operating temperature of +105°c. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in feed through configuration. The product carries possible position value of 4. A 0.14-4mm² of wire gauge. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in box package . It has a stripping length of 10mm. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 22 a. While 12-26 awg is its range or wire gauge. While 600v is the typical voltage of the product. It has a long 8 weeks standard lead time. The built-in terminal is 5.2mm wide. The nominal voltage of the product is 500v. It has a classic gray colour. The product clipline pttb, is a highly preferred choice for users. The typical current includes 20 a. The product carries 2 levels. The product is designated with the ear99 code number.
