Number of Levels:
2
Fused:
No
Termination Type:
Push-in
Series:
PTTB 2.5
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
22A
Hazardous Area Certification:
ATEX
Standards/Approvals:
VDE, RS, UL Recognised, ABS, ATEX, Bureau Veritas, CSA, cUL Recognised, cULus Recognised, DNV GL, EAC, EAC Ex, IEC 60947-7-1, IECEE CB Scheme, IECEX, LR, NK
Voltage:
500 V
Cable CSA:
0.14 to 4 mm²
Maximum Wire Size AWG:
12 AWG
Product Type:

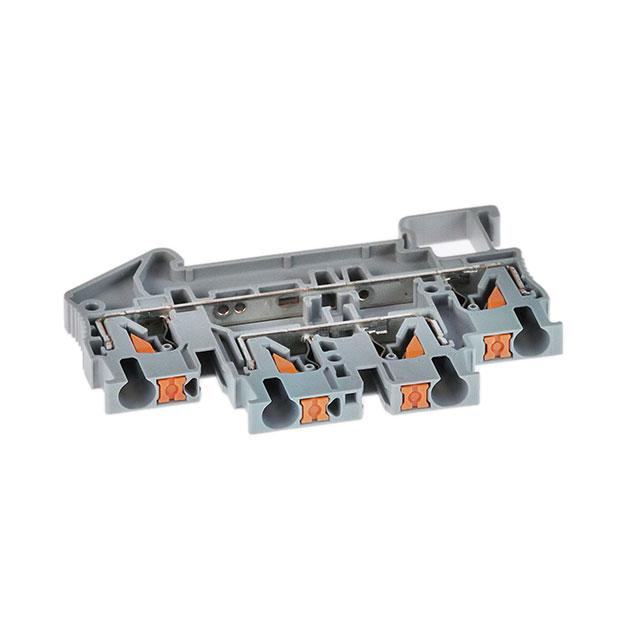

Double Level Terminal Block
Maximum Operating Temperature:
110°C
Sub Type:
Multi-Level
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-4mm²
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Box
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
26 A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
600V
standardLeadTime:
15 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
-
Color:
Gray
Series:
CLIPLINE PTTB
Fuse Type:
-
Current - UL:
5 A
Number of Levels:
2
ECCN:
EAR99
