Number of Levels:
1
Fused:
No
Termination Type:
Screw
Series:
UT 6-PE
Colour:
Green, Yellow
Minimum Operating Temperature:
-50°C
Minimum Wire Size AWG:
24 AWG
Hazardous Area Certification:
ATEX
Standards/Approvals:
DNV GL, cULus, cUL, CSA, LR, IEC 60947-7-2, EAC, UL, PRS, IECEE CB, VDE
Terminal Block Current:
41A
Cable CSA:
0.2 to 10 mm²
Maximum Wire Size AWG:
8 AWG

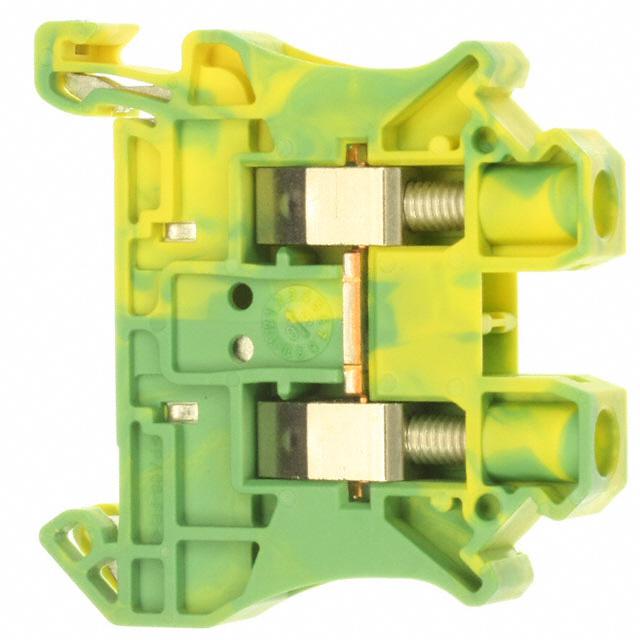

Product Type:
Feed Through Terminal Block
Maximum Operating Temperature:
110°C
Sub Type:
Single-Level
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw
Material - Insulation:
Polyamide (PA), Nylon
Type:
Ground, Earth
Number of Positions:
2
Wire Gauge or Range - mm²:
0.2-10mm²
title:
3044157
REACH Status:
REACH Affected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Levels:
1
Wire Gauge or Range - AWG:
8-24 AWG
Voltage - UL:
-
standardLeadTime:
8 Weeks
Terminal - Width:
8.2mm
Disconnect Type:
-
Voltage - IEC:
-
Features:
-
Color:
Green, Yellow
Series:
CLIPLINE UT
Packaging:
Box
Fuse Type:
-
ECCN:
EAR99
