Number of Levels:
1
Fused:
No
Termination Type:
Quick Connect
Series:
QTC 1.5-MT
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
24 AWG
Terminal Block Current:
17.5A
Hazardous Area Certification:
IECEx, ATEX
Standards/Approvals:
NK, LR, IEC 60947-7-1, EAC, DNV, cULus, CSA, Bureau Veritas, ABS
Voltage:
400 V
Cable CSA:
0.25 to 1.5 mm²
Maximum Wire Size AWG:
16 AWG

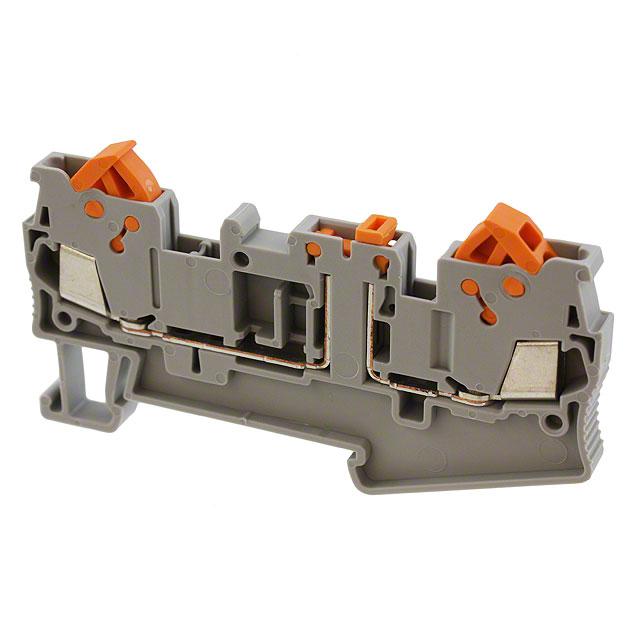

Product Type:
Knife Disconnect Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Disconnect
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
IDC
Material - Insulation:
Polyamide (PA), Nylon
Type:
Disconnect
Number of Positions:
2
Wire Gauge or Range - mm²:
0.25-1.5mm²
edacadModel:
3205103 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2514055
Package:
Bulk
Stripping Length:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
17.5 A
Wire Gauge or Range - AWG:
16-24 AWG
Voltage - UL:
600V
standardLeadTime:
15 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
Switch, Knife
Voltage - IEC:
400V
Features:
-
Color:
Gray
Series:
CLIPLINE QTC
Fuse Type:
-
Current - UL:
10 A
Number of Levels:
1
ECCN:
EAR99
