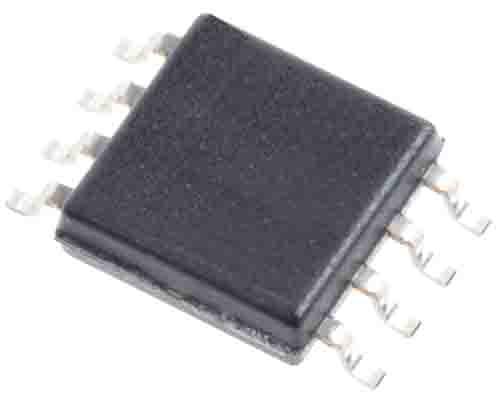

Maxim Integrated MAX22246CAWA+
Product Information
Maximum Forward Voltage:
5.5
Isolation Voltage:
5 kV
Maximum Data Rate:
200Mbps
Number of Pins:
8
Number of Channels:
2
Package Type:
SOIC
Maximum Input Current:
2.65 mA
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Propagation Delay tpLH / tpHL (Max):
9.5ns, 9.9ns
Operating Temperature:
-40°C ~ 125°C
Package / Case:
8-SOIC (0.295", 7.50mm Width)
Type:
CAN, RS232, RS422, RS485
Rise / Fall Time (Typ):
0.8ns, 1ns (Max)
Number of Channels:
2
Data Rate:
200Mbps
Inputs - Side 1/Side 2:
1/1
Package:
Tube
Pulse Width Distortion (Max):
2ns
Channel Type:
Unidirectional
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Isolated Power:
No
Common Mode Transient Immunity (Min):
50kV/µs (Typ)
standardLeadTime:
6 Weeks
Voltage - Isolation:
5000Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Voltage - Supply:
1.71V ~ 5.5V
Technology:
Capacitive Coupling
Base Product Number:
MAX22246
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MAX22246CAWA+ on website for other similar products.
We accept all major payment methods for all products including ET20300080. Please check your shopping cart at the time of order.
You can order Maxim Integrated brand products with MAX22246CAWA+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital Isolator ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Maxim Integrated MAX22246CAWA+. You can also check on our website or by contacting our customer support team for further order details on Maxim Integrated MAX22246CAWA+.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20300080 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Maxim Integrated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20300080.
Yes. We ship MAX22246CAWA+ Internationally to many countries around the world.
This is manufactured by Maxim Integrated. The manufacturer part number is MAX22246CAWA+. It also carries 5.5 of maximum forward voltage. It has 5 kv isolation voltage. Furthermore, it has a maximum data rate of 200mbps . It is comprised of 8 pins. It is supplied with 2 channels. The package is a sort of soic. While its maximum input current includes 2.65 ma. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It has a maximum propagation delay of 9.5ns, 9.9ns. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in 8-soic (0.295", 7.50mm width). It comes in can, rs232, rs422, rs485 configuration. The typical rise and fall time of the product is 0.8ns, 1ns (max). It has a maximised data speed rate of 200mbps. The typical 1/1 inputs of both sides (side 1/side 2). It is shipped in tube package . The maximum pulse width distortion is 2ns. The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 3 (168 hours). Isolated Power Options - no. Allows a 50kv/µs (typ) of minimum common mode transient immunity. It has a long 6 weeks standard lead time. 5000vrms of isolation voltage. The product is available in surface mount configuration. 8-soic is the supplier device package value. It has optimum voltage supply of 1.71v ~ 5.5v. This product use capacitive coupling technology. Moreover, it corresponds to max22246, a base product number of the product. The product is designated with the ear99 code number.
