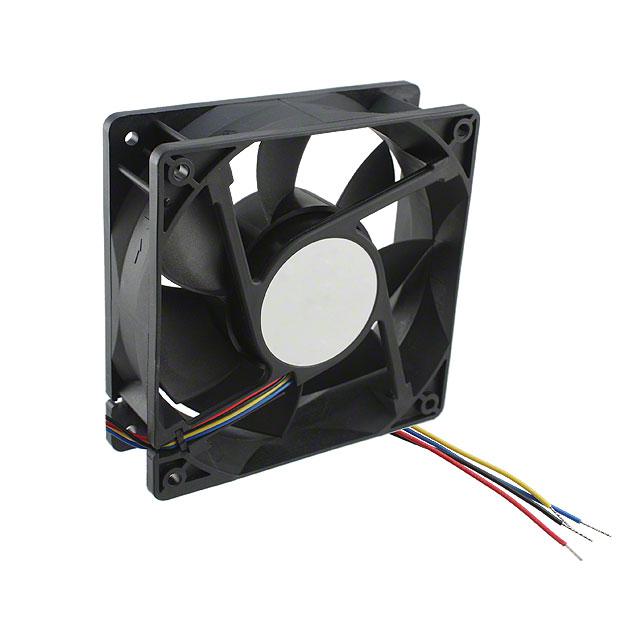

Delta Electronics AFB1212HHE-TP02

AFB1212HHE-TP02 Delta Electronics
AFB1212HHE-TP02
Delta Electronics

Product Information

Material - Blade:
Plastic
HTSUS:
8414.59.6590
RoHS Status:
ROHS3 Compliant
Width:
38.00mm
Power (Watts):
4.8 W
Air Flow:
120.1 CFM (3.36m³/min)
Approval Agency:
CE, CSA, UL, VDE
Voltage Range:
10.8 ~ 13.2VDC
Noise:
44.0dB(A)
Voltage - Rated:
12VDC
title:
AFB1212HHE-TP02
REACH Status:
REACH Unaffected
Bearing Type:
Ball
edacadModel:
AFB1212HHE-TP02 Models
edacadModelUrl:
/en/models/2034815
Operating Temperature:
14 ~ 158°F (-10 ~ 70°C)
RPM:
2900 RPM
Lifetime @ Temp.:
70000 Hrs @ 40°C
Static Pressure:
0.354 in H2O (88.2 Pa)
Size / Dimension:
Square - 120mm L x 120mm H
Termination:
4 Wire Leads
standardLeadTime:
32 Weeks
Current Rating (Amps):
0.400A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Ingress Protection:
-
Features:
Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Weight:
0.565 lb (256.28 g)
Series:
AFB
Material - Frame:
Plastic
Packaging:
Box
Fan Type:
Tubeaxial
Base Product Number:
AFB1212
ECCN:
EAR99
Checking for live stock

This is manufactured by Delta Electronics. The manufacturer part number is AFB1212HHE-TP02. The blades are constructed from robust plastic materials. It is assigned with possible HTSUS value of 8414.59.6590. The product is rohs3 compliant. Furthermore, the product is 38.00mm wide. The product features power and watts of 4.8 w. It has a 120.1 cfm (3.36m³/min) air flow rate. It is approved by ce, csa, ul, vde. While the voltage range is 10.8 ~ 13.2vdc. It has noise values of 44.0db(a). It also exhibits voltage rating of 12vdc. In addition, it is reach unaffected. This has integrated with a ball, a bearing with long-lasting features. The product has 14 ~ 158°f (-10 ~ 70°c) operating temperature range. It provides maximum rpm up to 2900 rpm. This product offers longer life span for 70000 hrs @ 40°c. The product has a 0.354 in h2o (88.2 pa) static pressure. The product's diameters include square - 120mm l x 120mm h. The product features 4 wire leads termination style. It has a long 32 weeks standard lead time. Additionally, the product's output is 0.400a. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include locked rotor protection, pwm control, speed sensor (tach). The typical product's weight is 0.565 lb (256.28 g). The product afb, is a highly preferred choice for users. The frame of the product is made from highly durable plastic materials. In addition, box is the available packaging type of the product. The latest designed fan is a type of tubeaxial offering unmatchable applications. Moreover, it corresponds to afb1212, a base product number of the product. The product is designated with the ear99 code number.
