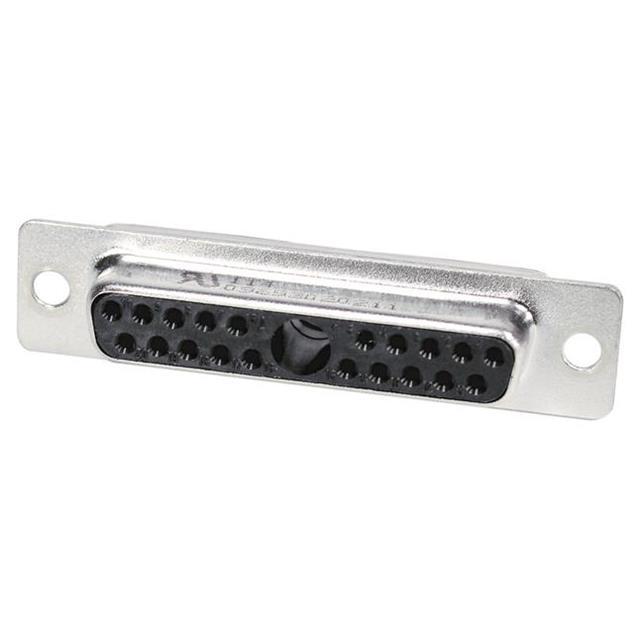

HARTING 09693020211
Product Information
Current Rating:
5A
Dimensions:
53 x 12.5 x 16.9mm
Gender:
Female
Body Orientation:
Straight
Length:
53mm
Housing Material:
Steel
Width:
12.5mm
Depth:
16.9mm
Minimum Operating Temperature:
-55°C
Number of Contacts:
1 (Power/Coax), 20 (Signal)
Maximum Operating Temperature:
+125°C
Contact Material:
Copper Alloy
Shell Size, Connector Layout:
3 (DB, B) - 21W1
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub, Combo
Shell Finish Thickness:
-
Dielectric Material:
Polyester, Glass Filled
standardLeadTime:
11 Weeks
REACH Status:
REACH Unaffected
Number of Positions:
21 (20 + 1 Coax or Power)
edacadModel:
09693020211 Models
Number of Rows:
2
edacadModelUrl:
/en/models/3181457
Package:
Bulk
Connector Type:
Receptacle for Female Contacts
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Signal and Coax or Power
Mating Cycles:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Color:
-
Series:
-
Shell Material, Finish:
Steel, Tin Plated
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09693020211 on website for other similar products.
We accept all major payment methods for all products including ET12582969. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09693020211 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub, D-Shaped Connector Housings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09693020211. You can also check on our website or by contacting our customer support team for further order details on HARTING 09693020211.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12582969 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12582969.
Yes. We ship 09693020211 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09693020211. The product has a current rating of 5a. The given dimensions of the product include 53 x 12.5 x 16.9mm. In addition, female is the available "Gender" of the product. It has straight body orientation. Its accurate length is 53mm. The product also features robust steel housing material. Furthermore, the product is 12.5mm wide. The product comes in 16.9mm depth. Whereas, the minimum operating temperature of the product is -55°c. The product contains 1 (power/coax), 20 (signal) contacts. It has a maximum operating temperature of +125°c. The product is made from sturdy copper alloy materials. 3 (db, b) - 21w1 is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. Note: contacts not included. The product has -55°c ~ 125°c operating temperature range. It comes in d-sub, combo connector style. Moreover, the product is constructed from highly polyester, glass filled dielectric material. It has a long 11 weeks standard lead time. In addition, it is reach unaffected. The product carries possible position value of 21 (20 + 1 coax or power). It comes in 2 of rows. It is shipped in bulk package . receptacle for female contacts Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of signal and coax or power. The product is available in panel mount configuration. It is made from durable shell materials and has an excellent finishing such as steel, tin plated. The product is designated with the ear99 code number.
