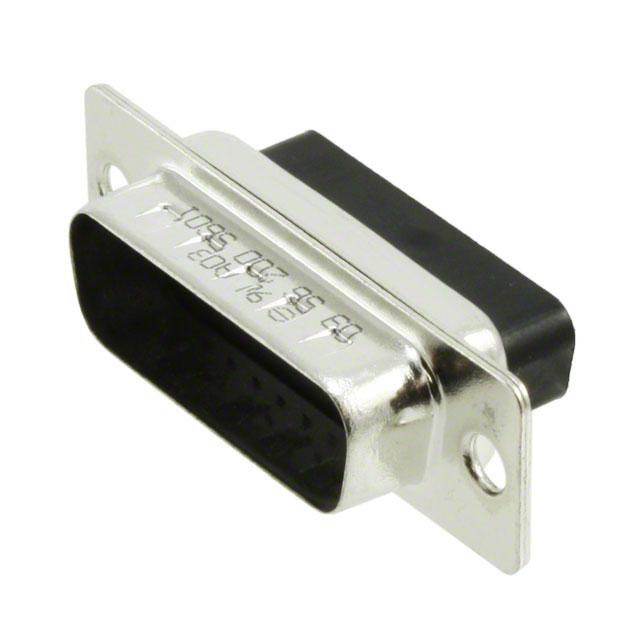

HARTING 09562005601
Product Information
Current Rating:
2.0A
Dimensions:
39.5 x 12.93 x 15.91mm
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Termination Method:
Crimp
Length:
39.5mm
D Connector Type:
High Density D-Sub
Housing Material:
Steel
Width:
12.93mm
Depth:
15.91mm
Minimum Operating Temperature:
-55.0°C
Pitch:
2.29mm
Number of Contacts:
26
Maximum Operating Temperature:
+105°C
Shell Size, Connector Layout:
2 (DA, A) High Density
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Note:
Contacts Not Included
Operating Temperature:
-55°C ~ 105°C
Connector Style:
D-Sub, High Density
Shell Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
standardLeadTime:
12 Weeks
REACH Status:
REACH Unaffected
Number of Positions:
26
edacadModel:
09562005601 Models
Number of Rows:
3
edacadModelUrl:
/en/models/3180893
Package:
Tray
Connector Type:
Plug for Male Contacts
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Signal
Mating Cycles:
-
Ingress Protection:
-
Features:
Grounding Indents
Mounting Type:
Panel Mount
Color:
-
Series:
-
Shell Material, Finish:
Steel, Tin Plated
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09562005601 on website for other similar products.
We accept all major payment methods for all products including ET11577093. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09562005601 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub, D-Shaped Connector Housings category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09562005601. You can also check on our website or by contacting our customer support team for further order details on HARTING 09562005601.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11577093 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11577093.
Yes. We ship 09562005601 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09562005601. The product has a current rating of 2.0a. The given dimensions of the product include 39.5 x 12.93 x 15.91mm. The product is available in cable mount configuration. In addition, male is the available "Gender" of the product. It has straight body orientation. It allows crimp termination method. Its accurate length is 39.5mm. Additionally, it has a high density d-sub type connector D . The product also features robust steel housing material. Furthermore, the product is 12.93mm wide. The product comes in 15.91mm depth. Whereas, the minimum operating temperature of the product is -55.0°c. Moreover, the product is 2.29mm. The product contains 26 contacts. It has a maximum operating temperature of +105°c. 2 (da, a) high density is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. Note: contacts not included. The product has -55°c ~ 105°c operating temperature range. It comes in d-sub, high density connector style. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester, glass filled dielectric material. It has a long 12 weeks standard lead time. In addition, it is reach unaffected. The product carries possible position value of 26. It comes in 3 of rows. It is shipped in tray package . plug for male contacts Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of signal. The splendid features of the product include grounding indents. The product is available in panel mount configuration. It is made from durable shell materials and has an excellent finishing such as steel, tin plated. The product is designated with the ear99 code number.
