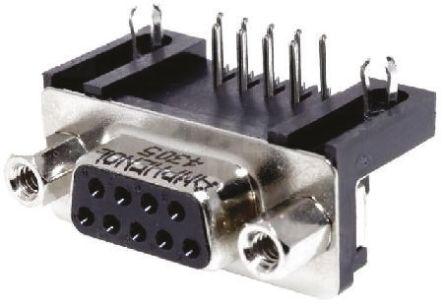

Amphenol L717SD Series, 9 Way Right Angle Through Hole PCB D-sub Connector Plug

L717SDE09P1ACH4F Amphenol L717SD Series, 9 Way Right Angle Through Hole PCB D-sub Connector Plug
Amphenol

Product Information

Current Rating:
5.0A
Dimensions:
30.89 x 12.55 x 20.6mm
Mounting Type:
Through Hole
Series:
L717SD
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
30.89mm
Housing Material:
Thermoplastic
Width:
12.55mm
Depth:
20.6mm
Contact Plating:
Gold
Gender:
Male
Mounting Hardware:
Boardlocks, 4-40 UNC Female Screwlocks
Number of Contacts:
9
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Brass
RoHs Compliant
Checking for live stock

This is L717SD Series 9 Way Right Angle Through Hole PCB D-sub Connector Plug manufactured by Amphenol. The manufacturer part number is L717SDE09P1ACH4F. The product has a current rating of 5.0a. The given dimensions of the product include 30.89 x 12.55 x 20.6mm. The product is available in through hole configuration. The product l717sd, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. Its accurate length is 30.89mm. The product also features robust thermoplastic housing material. Furthermore, the product is 12.55mm wide. The product comes in 20.6mm depth. The high-quality gold is used as contact plating material. In addition, male is the available "Gender" of the product. It has boardlocks, 4-40 unc female screwlocks hardware mounting . The product contains 9 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. The product is made from sturdy brass materials.
