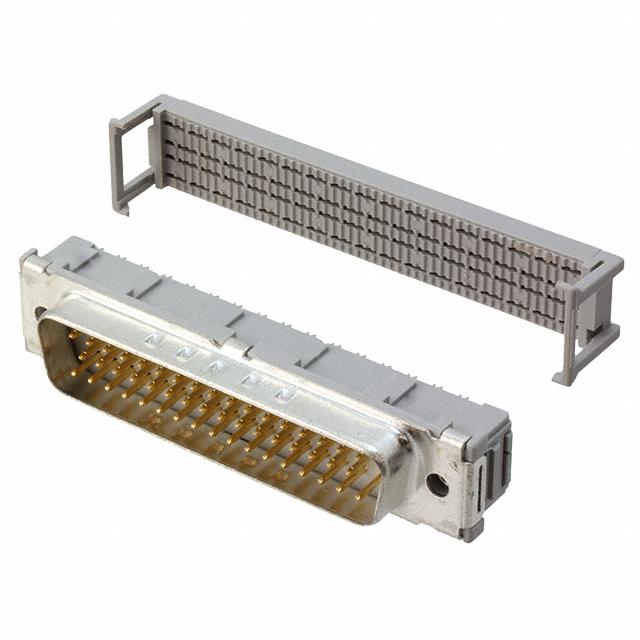

3M 8250-6005
Product Information
Series:
8200
Current Rating:
1A
Dimensions:
70.9 x 15.2 x 24.49mm
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Right Angle
Termination Method:
IDC
Length:
70.9mm
Housing Material:
Steel
Width:
15.2mm
Depth:
24.49mm
Contact Plating:
Gold over Nickel
Pitch:
2.74mm
Number of Contacts:
50
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Copper Alloy
Shell Size, Connector Layout:
5 (DD, D)
Flange Feature:
Housing/Shell (4-40)
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Connector Style:
D-Sub
Contact Finish Thickness:
30.0µin (0.76µm)
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions:
50
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
8250-6005 Models
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/138784
Package:
Tray
Wire Gauge:
-
Contact Form:
-
Connector Type:
Plug, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
IDC, Ribbon Cable
standardLeadTime:
15 Weeks
Current Rating (Amps):
1A
Backset Spacing:
-
Ingress Protection:
-
Features:
Feed Through, Grounding Indents
Mounting Type:
Panel Mount
Color:
Gray
Series:
8250
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
8250
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 8250-6005 on website for other similar products.
We accept all major payment methods for all products including ET12271421. Please check your shopping cart at the time of order.
You can order 3M brand products with 8250-6005 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D Sub Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 8250-6005. You can also check on our website or by contacting our customer support team for further order details on 3M 8250-6005.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12271421 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12271421.
Yes. We ship 8250-6005 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 8250-6005. The product 8200, is a highly preferred choice for users. The product has a current rating of 1a. The given dimensions of the product include 70.9 x 15.2 x 24.49mm. The product is available in cable mount configuration. In addition, male is the available "Gender" of the product. It has right angle body orientation. It allows idc termination method. Its accurate length is 70.9mm. The product also features robust steel housing material. Furthermore, the product is 15.2mm wide. The product comes in 24.49mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.74mm. The product contains 50 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. The product is made from sturdy copper alloy materials. 5 (dd, d) is the shell size and connector layout. Furthermore, housing/shell (4-40) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. It comes in d-sub connector style. It has 30.0µin (0.76µm) of contact finishing thickness. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester, glass filled dielectric material. The product carries possible position value of 50. In addition, it is reach unaffected. It comes in 3 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . plug, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features idc, ribbon cable termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 1a. The splendid features of the product include feed through, grounding indents. The product is available in panel mount configuration. It has a classic gray colour. The product 8250, is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. It has typical contact type of signal. Moreover, it corresponds to 8250, a base product number of the product. The product is designated with the ear99 code number.
