3M 12226-1150-00FR

Enrgtech Part No: ET12111366
|
Manufacturer Part No:
12226-1150-00FR
|
Manufacturer: 3M

Product Information

Series:

SDR 122

Current Rating:

500mA

Dimensions:

24.8 x 11.5 x 5mm

Mounting Type:

Through Hole

Voltage Rating:

250.0 V

Gender:

Female

Body Orientation:

Straight

Termination Method:

Solder

Length:

24.8mm

Housing Material:

Nylon

Width:

11.5mm

Depth:

5mm

Checking for live stock

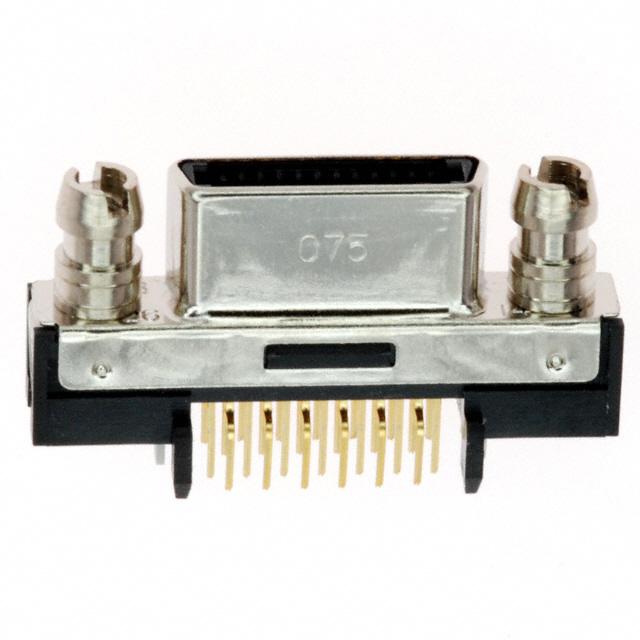

The 12226‑1150‑00FR from 3M is a high-density, board‑mount receptacle in the 122 Series Shrunk Delta Ribbon (SDR) family. It features 26 contacts arranged in 2 rows with a 0.8 mm pitch, making it ideal for space‑constrained electronic assemblies where compact, reliable data or signal interconnects are required. This shielded D-sub-style connector features a full-metal face for enhanced EMI protection, gold‑plated copper alloy contacts for signal integrity, and a robust through‑hole mounting design for secure PCB retention.

Crucial Features and Benefits of the 3M D Sub Connector

Compact 0.8 mm pitch, 26‑position D‑sub footprint.
Gold‑plated contacts (30 µin typical) for low‑resistance signal paths.
Shielded metal shell and ground‑lock feature for reliable EMI/ESD protection.
Through‑hole mount pin terminations, ideal for soldering and robust PCB attachment.
Rated up to ~500 mA current per contact and suitable for approx. 250 V signal systems.
Broad operating temperature range (‑40 °C to +70 °C per RS part summary) for industrial applications.
Supports high‑density I/O designs, including industrial vision, instrumentation, and compact modules.

Designed for High‑Density, High‑Performance Interconnects

The 3M 12226‑1150‑00FR delivers significant performance and packaging advantages for modern electronic systems where board real estate is at a premium and signal integrity matters. With its gold‑plated contacts, shielded shell, and secure through‑hole mounting, it supports repeated mating cycles, minimises signal loss and EMI interference, and provides a rugged interface for high‑speed, high‑density applications.

Wide Application Range

Board‑mounted I/O interface for machine vision cameras and industrial image capture modules.
Signals and data interconnect between PCBs in compact embedded systems.
Industrial instrumentation and control panels require high-density D-sub connectors.
High‑density communication modules where space savings and EMI shielding are critical.
OEM electronic assemblies in automation, aerospace or transportation requiring robust board mount connectors.

Shrunk Delta Ribbon (SDR) Vertical Shielded Receptacle Customer Drawing(Technical Reference)

Interconnect Catalog(Datasheets)

122xx-1150-00FR(Datasheets)

Your Rating

Reviews

Be the first to review.

Cheer on your favorite e-commerce corporation Enrgtech is here, offering high-quality 3M 12226-1150-00FR. Each component is made of 100% best quality materials D Sub Connectors, it makes you feel comfortable and make purchases about 3M. Our branded 3M is recognized globally, our server filled up with huge voluminous orders about 3M 12226-1150-00FR daily. You will notice the D Sub Connectors are efficient, durable, and secure. A typical form of the electrical connector such as 3M 12226-1150-00FR is the D-subminiature.

They get their name from the D-shaped metal shield they wear D Sub Connectors. D-subs were among the tiniest connections including 3M 12226-1150-00FR used on computer systems when they were first introduced. If you have got any queries or concerns regarding our D Sub Connectors, feel free to give us a call at +44 (0) 3303 800 157 or drop an email at sales@enrgtech.co.uk. We would be happy to help.
