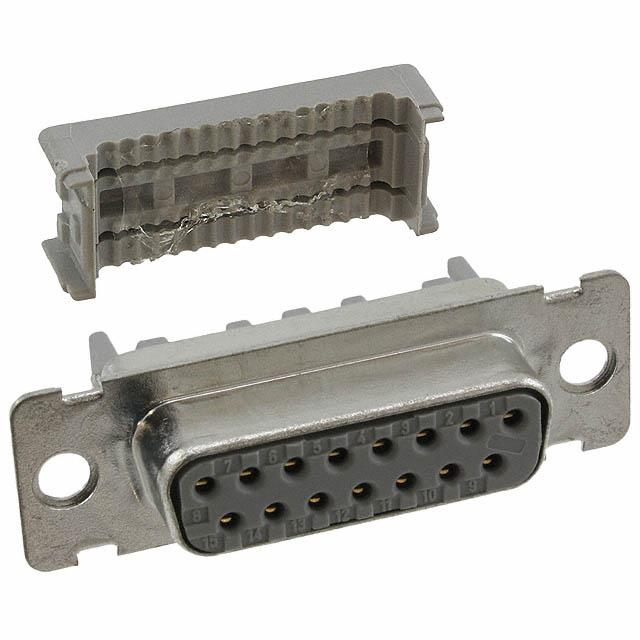

3M 8315-6000
Product Information
Series:
8300
Current Rating:
1A
Dimensions:
39.2 x 16.6 x 12.4mm
Mounting Type:
Cable Mount
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
IDC
Length:
39.2mm
Housing Material:
PBT
Width:
16.6mm
Depth:
12.4mm
Contact Plating:
Gold over Nickel
Pitch:
1.27mm
Number of Contacts:
15
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Copper Alloy
Shell Size, Connector Layout:
2 (DA, A)
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.4051
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Connector Style:
D-Sub
Contact Finish Thickness:
30.0µin (0.76µm)
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions:
15
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
8315-6000 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/138792
Package:
Tray
Wire Gauge:
26-28 AWG
Contact Form:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
IDC, Ribbon Cable
standardLeadTime:
15 Weeks
Current Rating (Amps):
1A
Backset Spacing:
-
Ingress Protection:
-
Features:
Feed Through
Mounting Type:
Panel Mount
Color:
Gray
Series:
8300
Shell Material, Finish:
Steel, Tin Plated
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
8315
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 8315-6000 on website for other similar products.
We accept all major payment methods for all products including ET11741464. Please check your shopping cart at the time of order.
You can order 3M brand products with 8315-6000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D Sub Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 8315-6000. You can also check on our website or by contacting our customer support team for further order details on 3M 8315-6000.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11741464 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11741464.
Yes. We ship 8315-6000 Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 8315-6000. The product 8300, is a highly preferred choice for users. The product has a current rating of 1a. The given dimensions of the product include 39.2 x 16.6 x 12.4mm. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. It allows idc termination method. Its accurate length is 39.2mm. The product also features robust pbt housing material. Furthermore, the product is 16.6mm wide. The product comes in 12.4mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 1.27mm. The product contains 15 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. The product is made from sturdy copper alloy materials. 2 (da, a) is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. It comes in d-sub connector style. It has 30.0µin (0.76µm) of contact finishing thickness. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester, glass filled dielectric material. The product carries possible position value of 15. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . Moreover, the product has a wire gauge of 26-28 awg. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features idc, ribbon cable termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 1a. The splendid features of the product include feed through. The product is available in panel mount configuration. It has a classic gray colour. It is made from durable shell materials and has an excellent finishing such as steel, tin plated. It has typical contact type of signal. Moreover, it corresponds to 8315, a base product number of the product. The product is designated with the ear99 code number.
