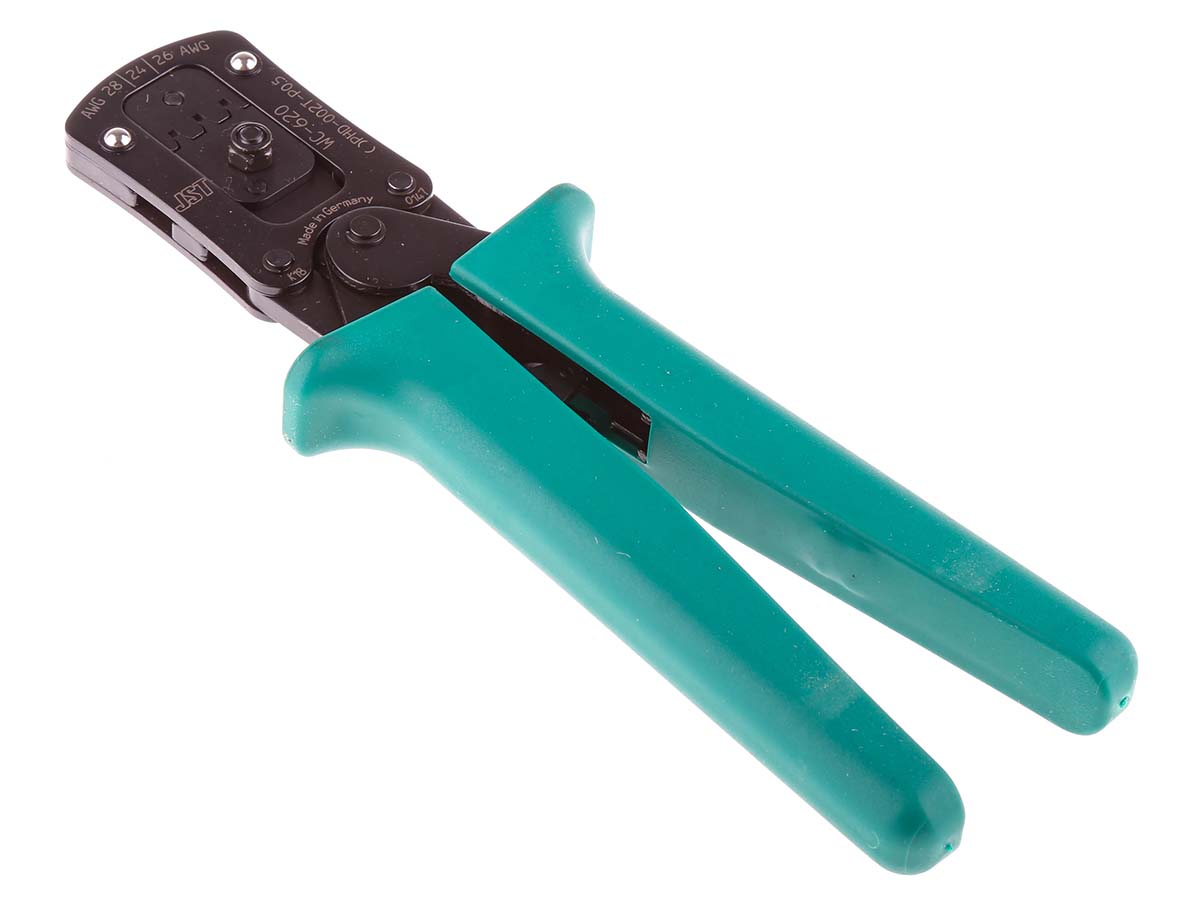

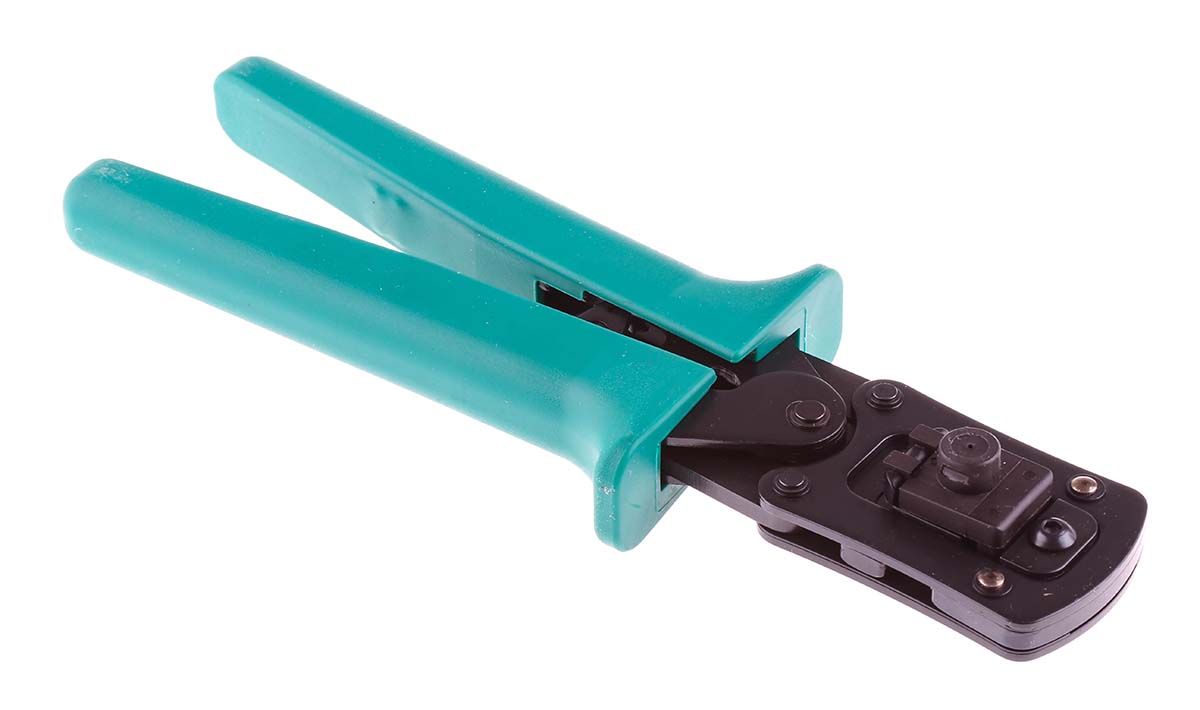

JST Ratchet Crimping Tool for PHD Receptacle, 28 → 24 AWG

  • Enrgtech Part No: ET16912792
  • |
  • Manufacturer Part No:

    WC-620

  • |
  • Manufacturer: JST
WC-620 JST Ratchet Crimping Tool for PHD Receptacle, 28 → 24 AWG
WC-620
WC-620
WC-620 JST Ratchet Crimping Tool for PHD Receptacle, 28 → 24 AWG
JST

Product Information

Series:
WC
Overall Length:
193 mm
Ratcheting:
Yes
For Use With:
SPHD Contacts
Operation:
Hand
Product Type:
Crimp Tool
RoHs Compliant
Checking for live stock

The JST WC-620 is a high-precision, manual hand crimp tool specifically engineered for terminating JST PHD series loose-piece contacts. Designed for professional use, it ensures consistent and gas-tight electrical connections for wire sizes ranging from 28 to 24 AWG. Its robust steel construction and ergonomic design provide a reliable solution for technicians who require high-quality crimps for low-volume production, prototype assembly, or critical repair and maintenance tasks.

Why Should You Buy the Tool?

The JST WC-620 ratchet hand crimp tool delivers professional-grade termination accuracy with a specialised ratchet mechanism that prevents partial crimps. It maximises user efficiency through ergonomic soft-grip handles and a precise contact locator for perfect terminal positioning.

  • Reliable ratchet mechanism ensures a full crimping cycle every time.
  • Ergonomic handles reduce hand fatigue during repetitive manual operations.

Feature Highlights & Applications Areas

  • Key Features:
  • Built-in ratchet release lever for safety.
  • Integrated flap-style locator and wire stop.
  • Precision-ground die profiles for 24, 26, and 28 AWG.
  • Durable steel construction with soft-grip handles.
  • Uses:
  • Prototype wire harness assembly.
  • Electrical maintenance and field repairs.
  • Low-volume industrial production.
  • Laboratory and R&D testing environments.

pdf icon
JST Crimping Tools Datasheet(Technical Reference)
pdf icon
PHD crimp tool(Technical Reference)
pdf icon
Operating Instructions(Technical Reference)
pdf icon
JST-WC-620 Datasheet(Technical Reference)
