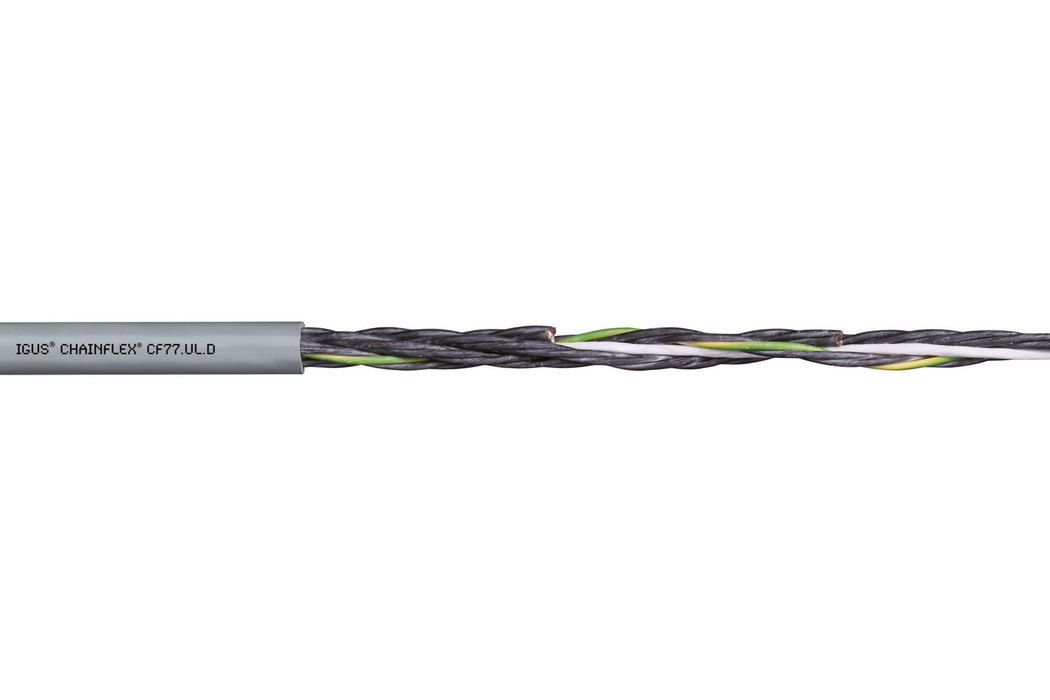

chainflex CF77.UL.D control cable PUR 5G
Product Information
Screened/Unscreened:
Unscreened
Earth Cable:
Yes
Conductor Resistance:
8 Ω/km
Oil Resistant:
Yes
American Wire Gauge:
14 AWG
Number of Cores:
5
Outer Diameter:
10.5mm
Standards Met:
CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1
Cable Shape:
Multicore
Maximum Operating Temperature:
+80°C
Voltage Rating:
1 kV
Minimum Bend Radius:
4 x D
Fire Behaviour:
Flame Retardant
Armoured:
No
Length:
25m
Sheath Material:
PUR
Current Rating:
30 A
Screen Type:
Unscreened
Conductor Material:
Copper
Series:
chainflex CF77.UL.D
Sheath Colour:
Grey
Cross Sectional Area:
2.5 mm²
Minimum Operating Temperature:
-25°C
Insulation Material:
TPE
Checking for live stock
FAQs
Yes. You can also search CF77.UL.25.05.D on website for other similar products.
We accept all major payment methods for all products including ET17976464. Please check your shopping cart at the time of order.
You can order Igus brand products with CF77.UL.25.05.D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Control Cable category are shipped in lowest possible time.
You will get a confirmation email regarding your order of chainflex CF77.UL.D control cable PUR 5G. You can also check on our website or by contacting our customer support team for further order details on chainflex CF77.UL.D control cable PUR 5G.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17976464 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Igus" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17976464.
Yes. We ship CF77.UL.25.05.D Internationally to many countries around the world.
This is chainflex CF77.UL.D control cable PUR 5G manufactured by Igus. The manufacturer part number is CF77.UL.25.05.D. Screen Options - unscreened. It has an earth cable included yes . The conductor has 8 ω/km resistance. Additionally, it is oil resistant yes . Features 14 awg - American Wire Gauge. The product consists of 5 cores. Its outer diameter is 10.5mm. The product complies with all safety standards, such as ce, cei 20-35, cruus, csa, ctp, din en 50363-4-1, eac, ft1, iec 60332-1-2, nfpa 79, ul, vw-1. Moreover, this cable has a multicore shape. It has a maximum operating temperature of +80°c. Moreover, the product has a nominal 1 kv voltage rating. It bears 4 x d of minimum bend radius. The product has a flame retardant fire behaviour. It is armoured no . Its accurate length is 25m. The sheath is constructed from durable and adorable pur material. The product has a current rating of 30 a. It has a/an unscreened type screen . The conductor is made from copper material. The product chainflex cf77.ul.d, is a highly preferred choice for users. The sheath has an adorable grey colour. The product has 2.5 mm² cross section area. Whereas, the minimum operating temperature of the product is -25°c. It has a robust tpe insulation material.
