Contactor Application:
Motor Control, Resistive Load
Coil Voltage:
440 V
Pole and Throw Configuration:
3
Width:
45 mm
Contact Current:
38A
Control Circuit Voltage Uc:
440 V
Function:
AC
Operational Current Ie:
38A

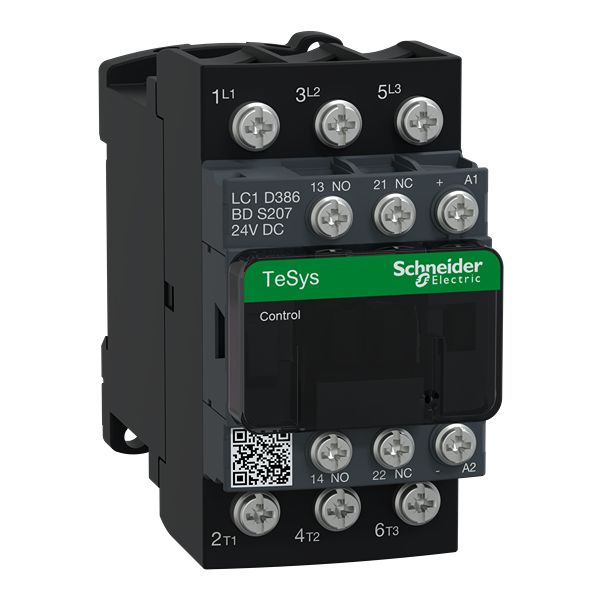

Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Lug Ring
Length:
85mm
Standards/Approvals:
EN 60947-5-1, CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN/ISO 13849-1, IEC 60068-2-30, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, IEC 60529, IEC 60695-2-1, IEC 60947, IEC 60947-1 Annex Q, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40:Annex JJ, UL 60947-4-1, UL 94
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
Rail
Series:
LC1D
Depth:
101mm
Normal State Configuration:
3 NO
Contact Voltage:
24V
Power Rating:
18.5W
Number of Poles:
3
Minimum Operating Temperature:
-40°C
