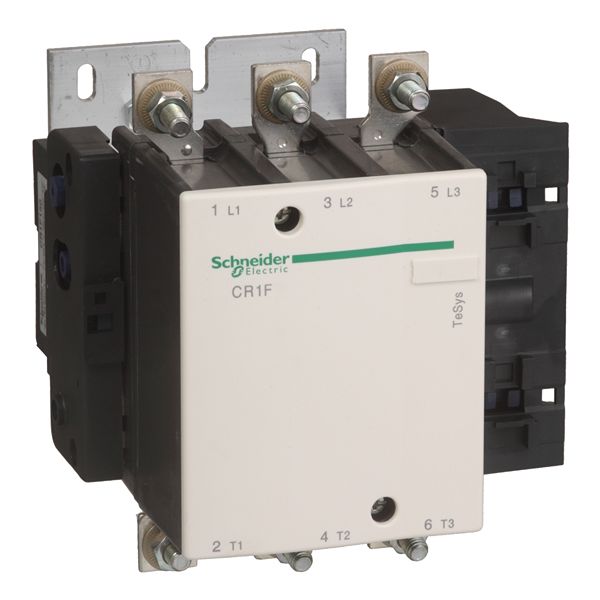

Contactor Application:
Motor Control, Resistive Load
Coil Voltage:
110 V
Pole and Throw Configuration:
3
Width:
201.5 mm
Contact Current:
265A
Control Circuit Voltage Uc:
110 V
Function:
AC
Operational Current Ie:
265A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Lug Ring
Minimum Operating Temperature:
-15°C
Length:
203mm
Standards/Approvals:
IEC 60695-2-1, IEC 60947, IEC 60947-1 Annex Q, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40:Annex JJ, UL 60947-4-1, UL 94, CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, EN/ISO 13849-1, IEC 60068-2-30, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, IEC 60529
Series:
CR1F
Depth:
213mm
Normal State Configuration:
3 NO
Contact Voltage:
110V
Power Rating:
132kW
Number of Poles:
3
