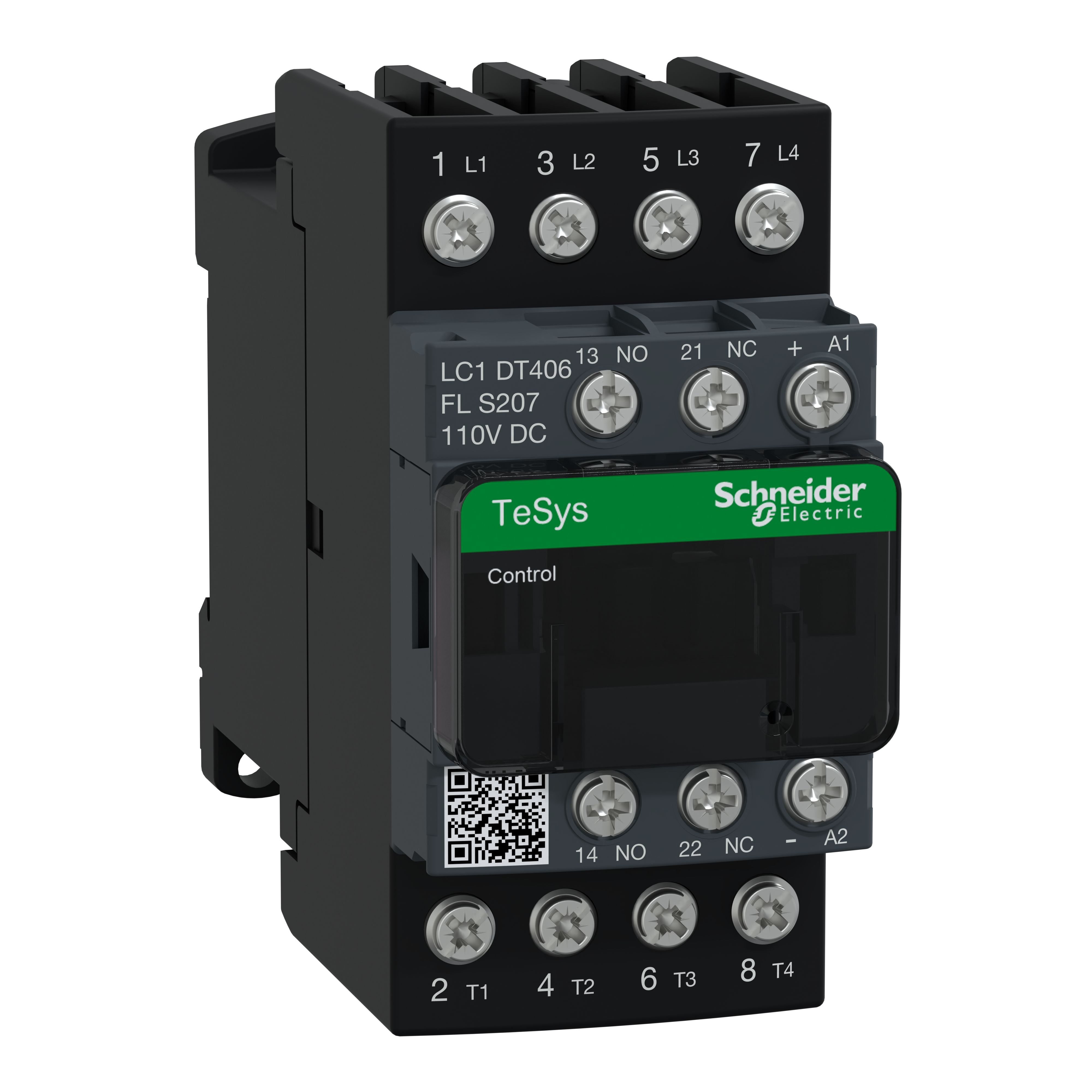

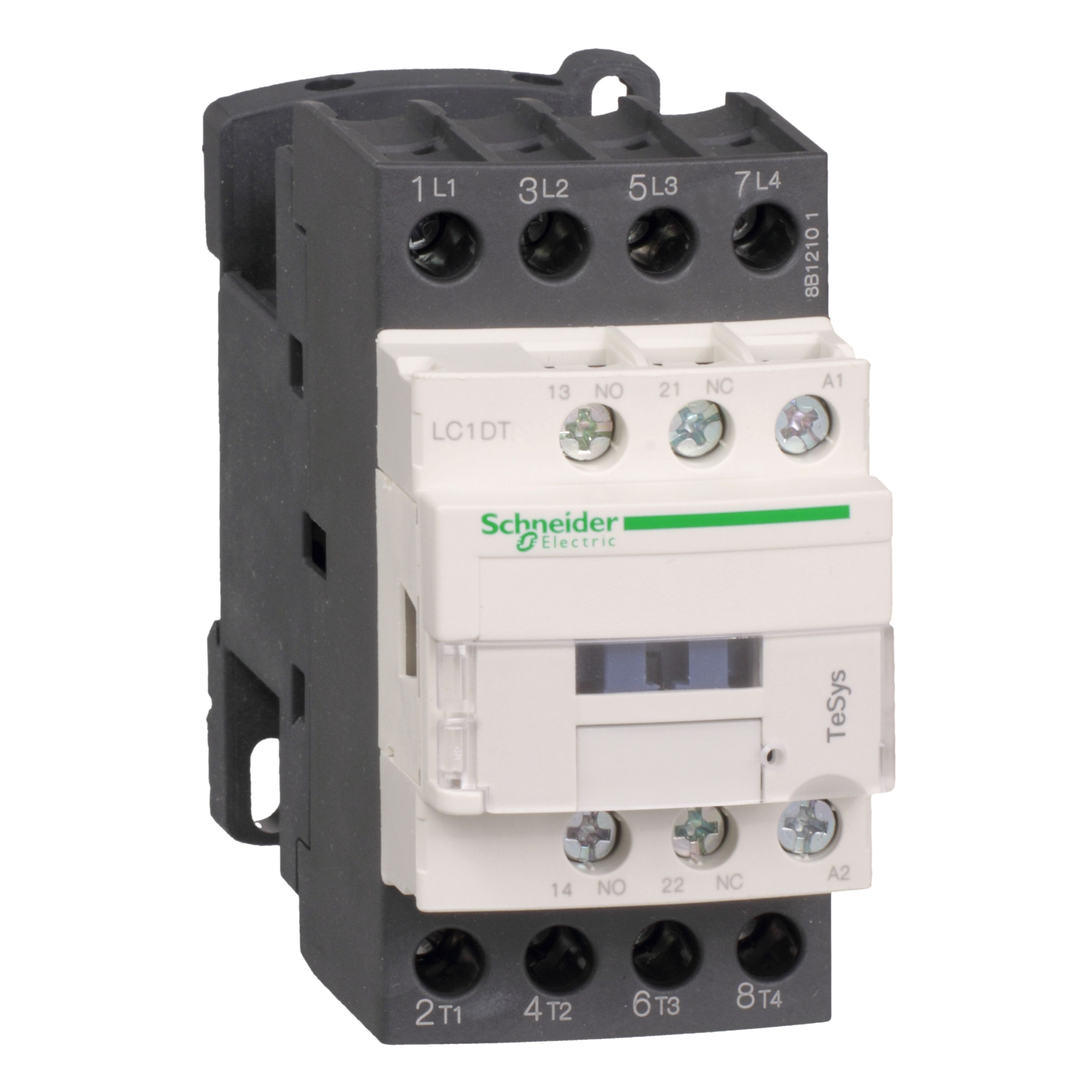

Contactor Application:
Resistive Load
Coil Voltage:
110 V dc
Pole and Throw Configuration:
4
Width:
45 mm
Contact Current:
40A
Control Circuit Voltage Uc:
110 V dc
Function:
AC
Operational Current Ie:
40A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Lug Ring
Length:
107mm
Standards/Approvals:
IEC 60695-2-1, IEC 60529, IEC 60335-2-40:Annex JJ, IEC 60335-1:Clause 30.2, IEC 60068-2-30, EN/ISO 13849-1, EN 60947-5-1, EN 60947-4-1, UL 94, UL 60947-4-1, UL 60335-2-40:Annex JJ, IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 Annex Q, IEC 60947, CSA C22.2 No 60947-4-1, CSA C22.2 No 14
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
Plate
Series:
LC1D
Depth:
91mm
Normal State Configuration:
4 NO
Contact Voltage:
690V ac
Power Rating:
4W
Number of Poles:
4
Minimum Operating Temperature:
-40°C
