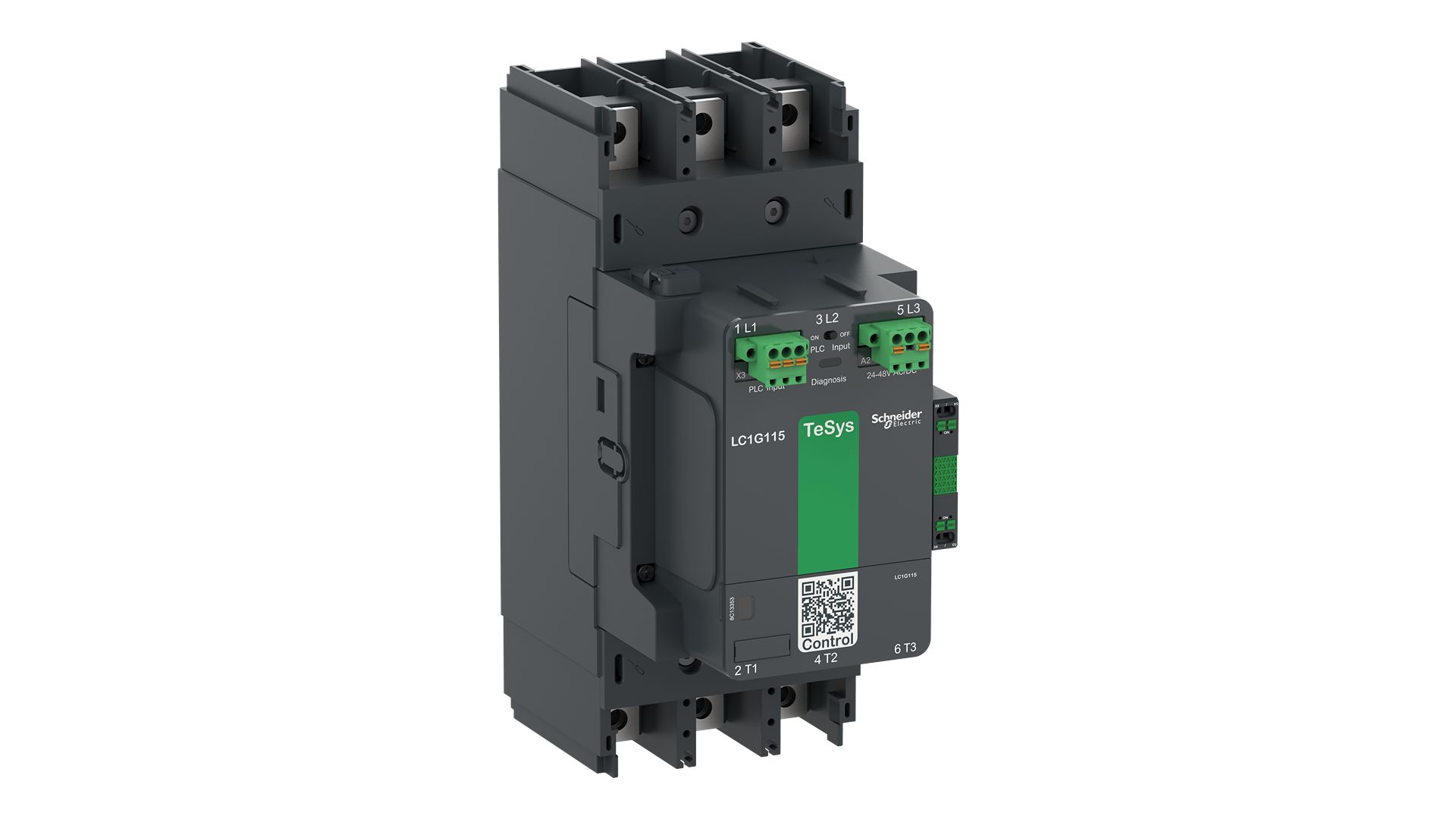

Contactor Application:
Power Switching, Motor Control
Coil Voltage:
24/48 V ac/dc
Pole and Throw Configuration:
3P
Width:
108 mm
Contact Current:
305A
Control Circuit Voltage Uc:
48 V
Operational Current Ie:
185A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Minimum Operating Temperature:
-25°C
Length:
255mm
Standards/Approvals:
IEC 60068-2-30, UL 94, UL 60947-4-1, UL 60335-2-40:Annex JJ, IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 Annex Q, IEC 60947, IEC 60695-2-1, IEC 60529, IEC 60335-2-40:Annex JJ, IEC 60335-1:Clause 30.2, EN/ISO 13849-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 14
Number of Auxiliary Contacts:
2
Contact Voltage:
1000V
Series:
LC1G
Depth:
193mm
Normal State Configuration:
3 NO
Auxiliary Contact Configuration:
1 NO/1 NC
Power Rating:
110kW
Number of Poles:
3
